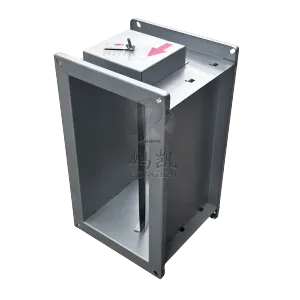

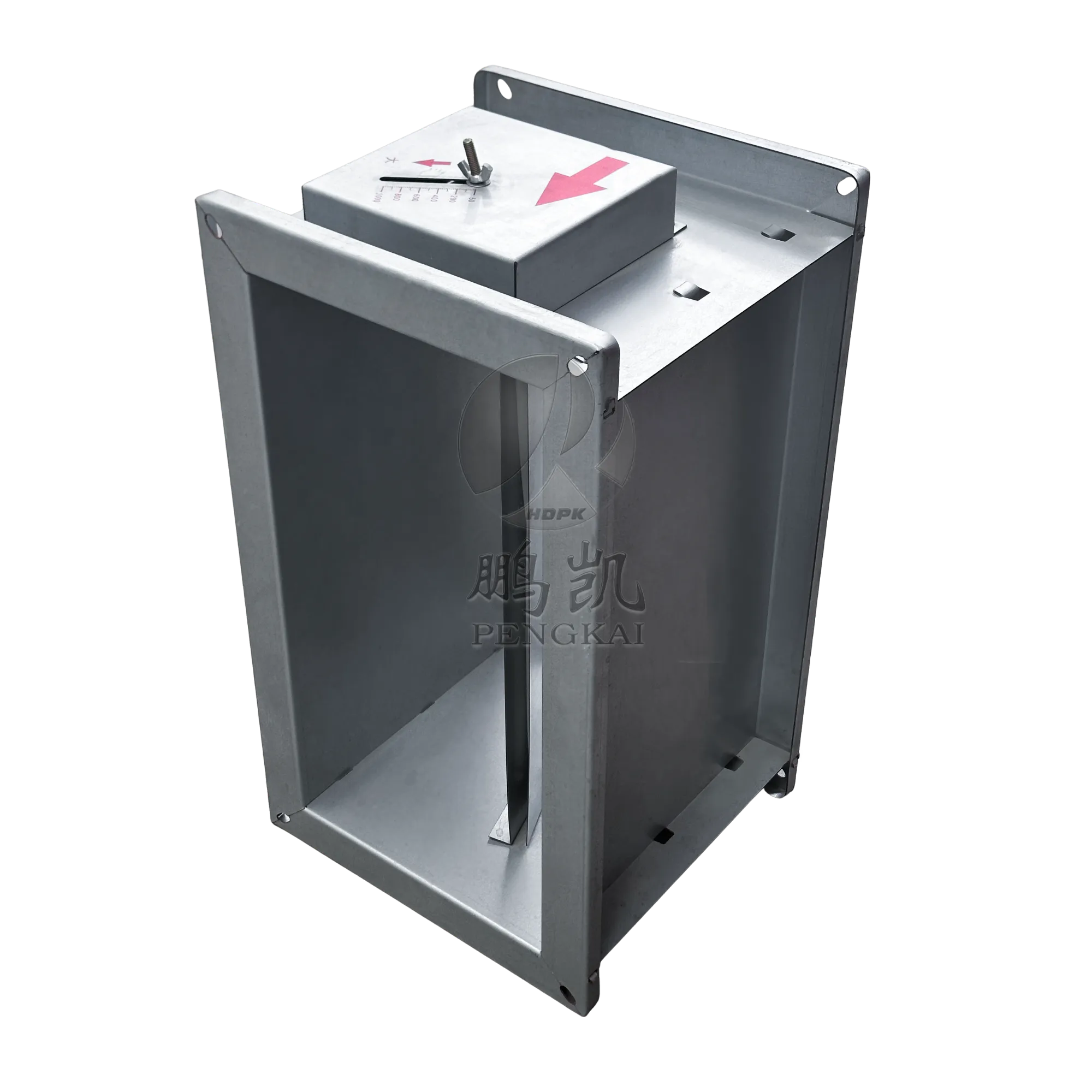

Section 1: Product Overview

The Manual Volume Control Damper is one of the most widely installed components in building HVAC and mechanical ventilation systems worldwide. While automatic and electronically controlled Dampers handle fire protection and emergency response functions, the Manual Volume Control Damper serves the essential day-to-day function of airflow balancing — ensuring that each zone, room, and duct branch in a building receives the correct volume of conditioned or fresh air as specified in the ventilation system design.

Without proper airflow balancing, ventilation systems consistently deliver too much air to some zones and insufficient air to others. This results in uncomfortable temperature variation between spaces, excessive energy consumption from oversupply in some areas, poor air quality in undersupplied zones, and difficulty achieving the designed indoor environmental performance. The Manual Volume Control Damper addresses this directly, allowing system commissioning engineers and building maintenance teams to precisely set and lock airflow volumes at each branch point in the duct network.

The simplicity of the manual operation mechanism is a key advantage in many building applications. With no electrical components, no control wiring, and no requirement for integration with building management systems, the Manual Volume Control Damper can be installed, adjusted, and maintained by standard HVAC technicians without specialist electrical or controls expertise. Once set to the correct position during system commissioning, the positive locking device holds the blade angle against duct air pressure indefinitely, requiring no further adjustment under normal operating conditions.

Dezhou Pengkai Air Conditioning Equipment Co., Ltd. is a comprehensive HVAC manufacturer based in Dezhou, Shandong Province, integrating research and development, production, sales, installation, and after-sales service. We supply manual damper products to HVAC engineering contractors, building developers, mechanical and electrical consultants, and construction procurement teams across domestic and international markets.

Section 2: Product Structure and Key Components

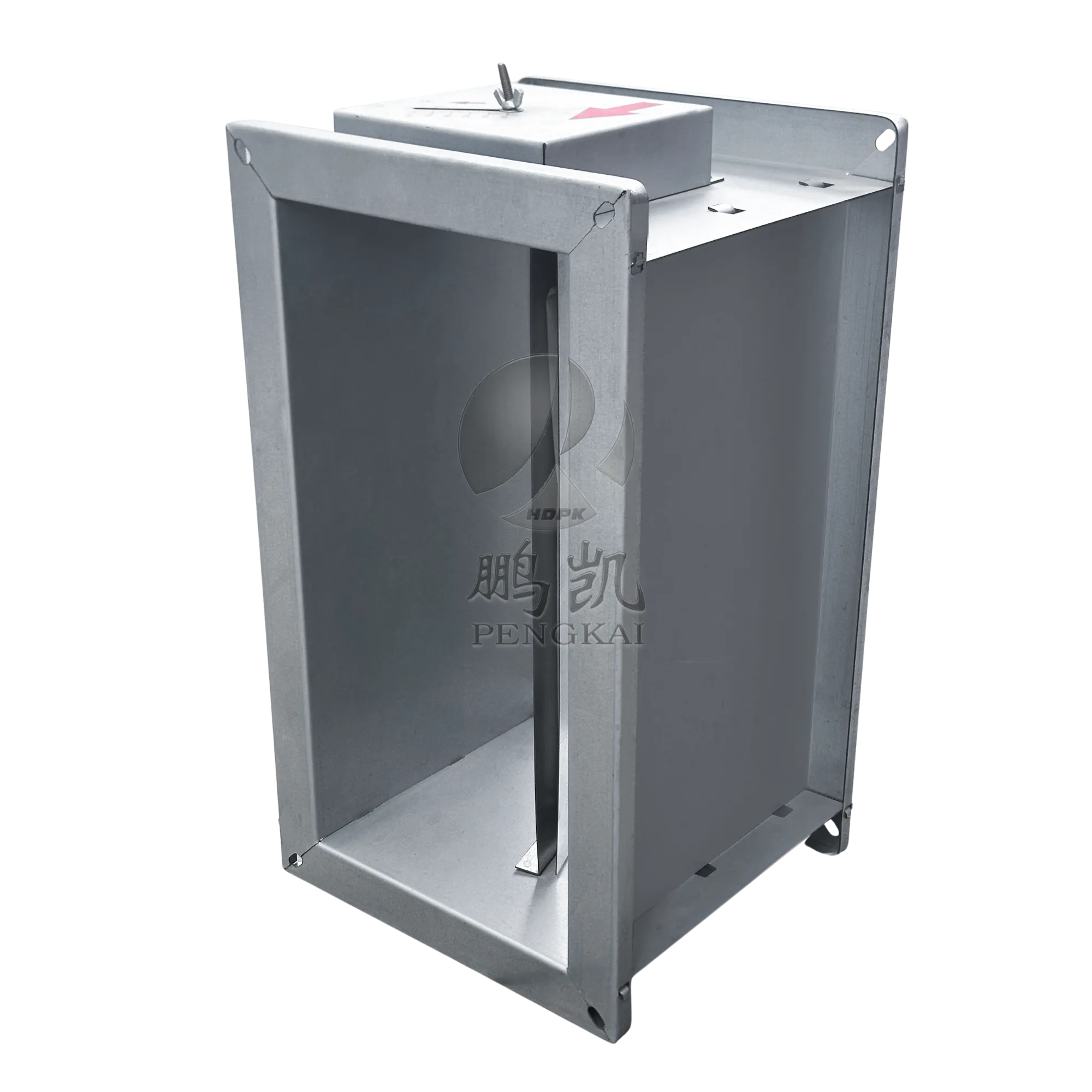

Valve Body Frame The outer frame is the structural backbone of the Manual Volume Control Damper, fabricated from galvanized steel sheet as the standard option, with aluminum alloy and stainless steel alternatives available for specific application environments. Standard galvanized steel frames are produced with corner riveting or clinching connections that avoid welding, preserving the galvanized surface coating and preventing corrosion at joint areas. Frame depth is typically 140 to 170mm, providing sufficient internal length for the blade assembly and linkage mechanism.

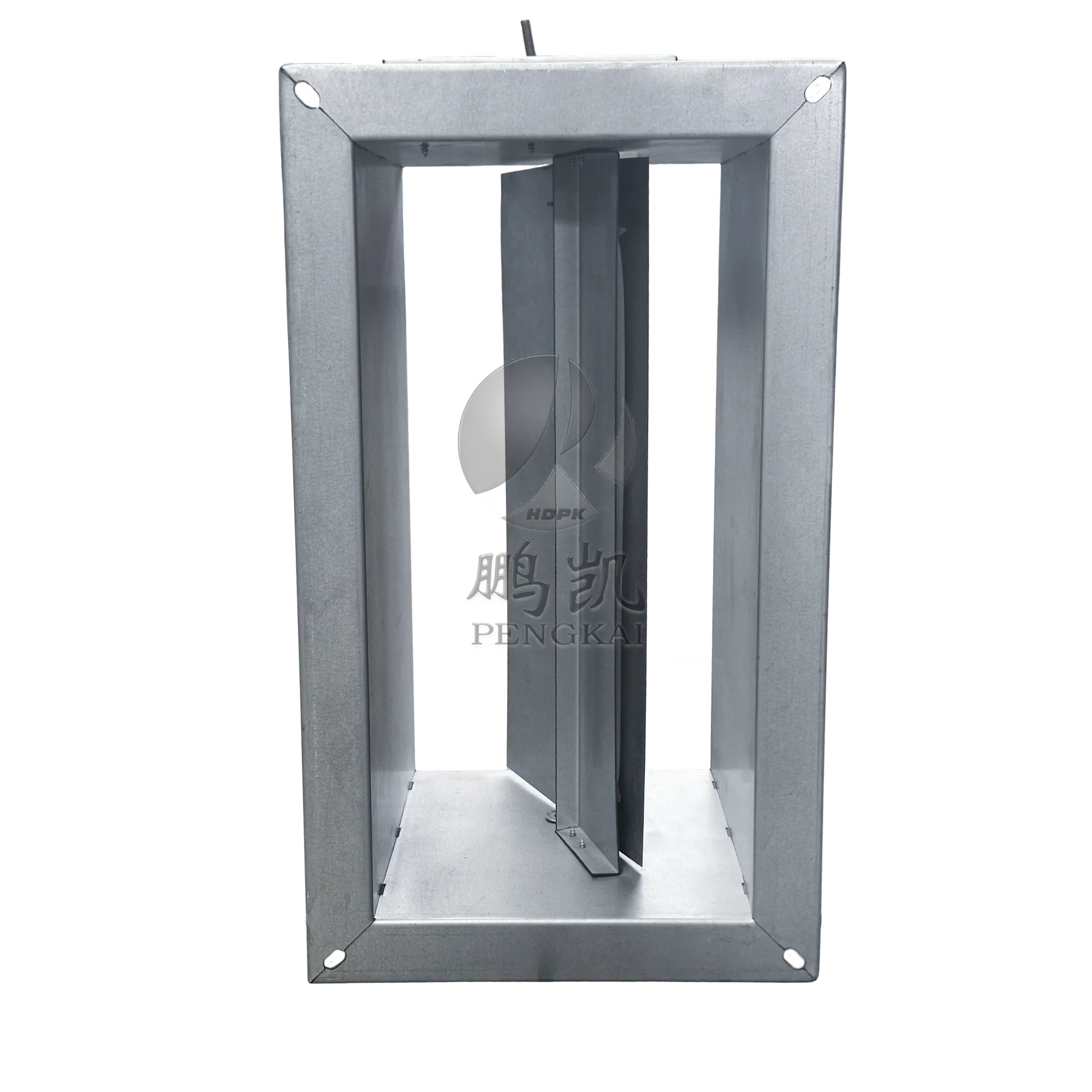

Opposed Blade Assembly The opposed blade design is the standard configuration for rectangular duct dampers and the preferred choice for precise airflow regulation applications. Blade pairs rotate in opposite directions simultaneously under the linkage mechanism, creating a symmetrical restriction across the duct cross-section. This opposed movement produces more linear airflow characteristics compared to parallel blade designs, particularly at low blade opening angles, where accurate flow control is most critical during system balancing. Blade edges are fitted with sealing strips or rubber gaskets to minimize air leakage in the fully closed position.

Transmission and Linkage Mechanism The four-bar linkage or gear transmission mechanism converts the rotation of the external operating handle or handwheel into synchronized blade angle changes across all blade pairs. The mechanism is designed to maintain consistent blade angle uniformity across the full width of the damper, ensuring even airflow distribution across the duct cross-section at all operating positions.

Operating Device Three operating device options are available depending on the installation environment and accessibility requirements:

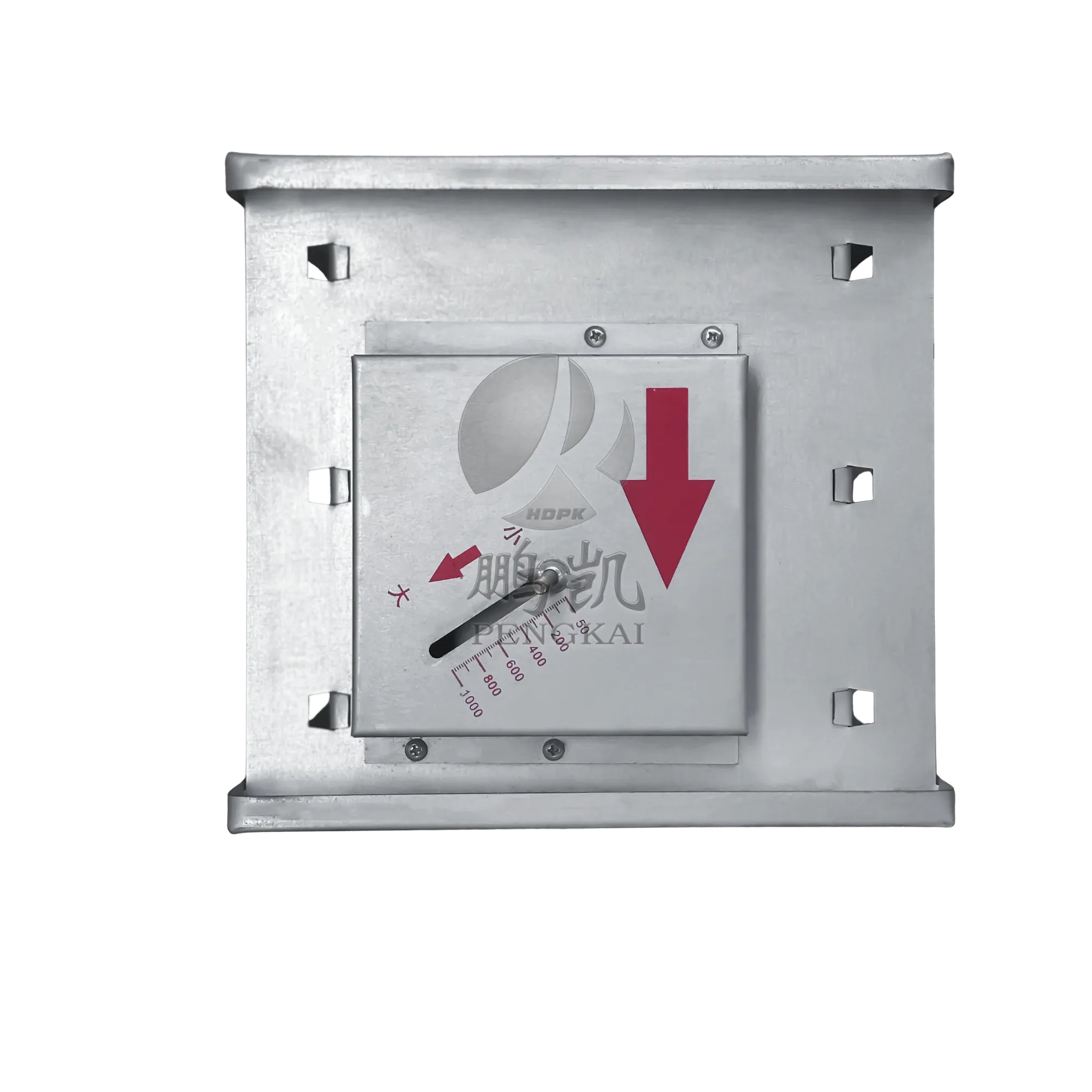

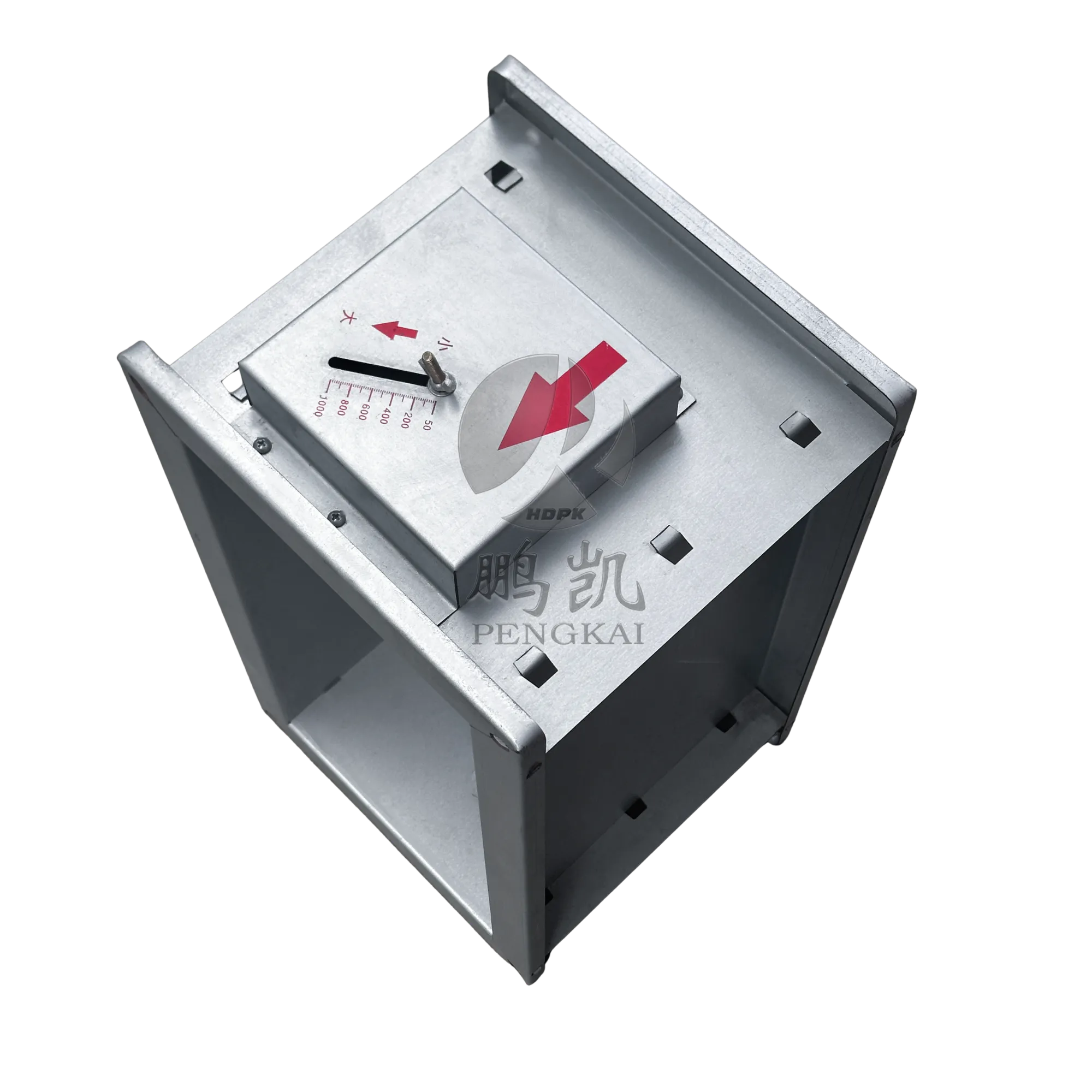

· Handle Type: The most common configuration for standard accessible installations. The handle rotates directly on the damper frame face, with a graduated scale indicating blade opening angle in degrees.

· Handwheel Type: Preferred for large-diameter or high-pressure duct applications where greater mechanical advantage is required to overcome airflow forces on the blades. The handwheel drives the blade assembly through a gear reduction mechanism.

· Pull-Cord Type: Used for installations in ceiling voids, raised floor spaces, or other locations where direct access to the damper face is not available. Two cords provide open and close operation, with a remote position indicator showing current blade angle.

Positive Locking Device The locking device secures the blade assembly at any set angle position, preventing displacement from duct air pressure, vibration, or accidental contact. The locking mechanism is engaged after setting the blade to the required position and must be manually released before any subsequent adjustment. National standard GB 50738-2011 requires the blade angle indicator reading to correspond with actual blade position within a tolerance of 5 degrees.

Bearing and Shaft Assembly Blade pivot shafts run in copper sleeve or nylon bearings installed in the frame side plates. These bearing materials provide low-friction rotation while eliminating the need for regular lubrication in most installation environments. Smooth blade rotation is maintained over the service life of the unit, preventing the gradual stiffening that would otherwise occur from direct metal-on-metal shaft contact.

Sealing Components Sealing strips along blade edges and between blades and the frame contact surface reduce air leakage in the closed position. Standard models achieve a relative leakage rate of ≤10%. High-seal models with enhanced sealing strip specifications achieve ≤5% relative leakage, suitable for applications requiring effective airflow isolation between duct branches.

Section 3: Technical Specifications

Custom sizes outside standard range are available upon request. Please contact our sales team with your specific duct dimensions and application requirements.

Section 4: Material Selection Guide

Selecting the correct frame and blade material for the HVAC Duct Airflow Balancing Damper is important for matching the unit to the operating environment and ensuring long service life without premature corrosion or mechanical degradation.

Galvanized Steel — Standard General Ventilation Galvanized steel is the standard and most cost-effective material choice for the majority of building HVAC and ventilation applications. The zinc coating provides adequate corrosion protection for indoor ductwork in commercial, office, hotel, hospital, and residential environments where air humidity is within normal indoor ranges. Galvanized steel frames are produced with riveted or clinched corner connections to preserve the galvanized coating. This is the recommended choice for standard supply air, return air, exhaust air, and fresh air duct systems.

Aluminum Alloy — Cleanroom and Lightweight Applications Aluminum alloy frames and blades offer a significant weight reduction compared to steel, making them the preferred choice for large-format dampers in applications where minimizing structural load on the ductwork is important. The natural oxide layer on aluminum provides good corrosion resistance without additional surface treatment, making aluminum alloy dampers suitable for cleanroom exhaust systems, pharmaceutical facility ventilation, and laboratory fume exhaust applications where surface coating flaking is a contamination concern.

Stainless Steel — High-Temperature and Corrosive Environments Stainless steel frames and blades are specified for applications where the duct airflow contains elevated levels of humidity, grease vapor, mild chemical fumes, or heat. Kitchen exhaust ductwork, industrial production area exhaust systems, food processing facility ventilation, and coastal or tropical building environments where external humidity affects duct conditions are the primary applications for stainless steel Manual Volume Control Damper configurations.

Section 5: How It Works — Operating Principle

Airflow Regulation by Blade Angle The operating principle of the Opposed Blade Manual Air Damper is straightforward: rotating the external handle or handwheel changes the angle of the blade assembly relative to the duct airflow direction. At 90 degrees, blades are fully aligned with airflow and present minimum resistance, allowing maximum air volume through the damper. As the blades rotate toward 0 degrees, they progressively obstruct the duct cross-section, increasing resistance and reducing airflow. At 0 degrees, the blades are perpendicular to airflow and the damper is fully closed.

The opposed blade configuration means adjacent blade pairs rotate in opposite directions simultaneously. As one blade rotates clockwise, its neighbor rotates counterclockwise by the same angle. This creates a series of symmetrical angled restrictions across the duct width, producing more even velocity distribution across the duct cross-section compared to parallel blade designs where all blades rotate in the same direction.

System Balancing During Commissioning During HVAC system commissioning, a test and balance engineer measures airflow velocity at each duct branch using a pitot tube, anemometer, or flow hood. The Manual Volume Control Damper at each branch is then adjusted to match the measured airflow to the design specification. Once the correct position is found, the locking device is engaged and the position is marked on the damper body or documented in the commissioning record. Under normal operating conditions, no further adjustment is required.

Zone Isolation and Shutdown The Manual Volume Control Damper can be fully closed to isolate individual duct branches for maintenance, equipment servicing, filter replacement, or ductwork cleaning operations. This allows work to be carried out on one section of the ventilation system without shutting down the entire system, minimizing disruption to building occupants.

Smoke Zone Manual Control In buildings with manual smoke zone control requirements, the HVAC Duct Airflow Balancing Damper can be manually closed to prevent smoke from spreading to non-fire zones through ventilation ductwork. Fully opening dampers in smoke exhaust zones directs airflow toward the exhaust pathways, concentrating exhaust fan capacity where it is most needed during a fire event.

Section 6: Manufacturing Process and Quality Control

Dezhou Pengkai Air Conditioning Equipment Co., Ltd. applies systematic quality management throughout Manual Volume Control Damper production:

Steel and Material Incoming Inspection Galvanized steel sheet, aluminum alloy sheet, stainless steel sheet, sealing strip material, and bearing components are inspected against specification requirements on receipt. Material certification documents are retained for each production batch.

CNC Sheet Metal Processing Frame and blade components are cut and formed using CNC-controlled sheet metal equipment. Dimensional precision at this stage directly affects blade-to-frame gap consistency, which determines air leakage performance in the closed position. Tight tolerances are maintained across all standard and custom size production runs.

Frame Assembly Frame corners are joined by riveting or clinching rather than welding, preserving the galvanized or coated surface at corner joints. Frame squareness is verified before blade assembly installation to ensure correct blade travel and even sealing contact.

Blade Assembly and Linkage Installation Blade pairs are installed into the frame with pivot shafts running in bearing sleeves. The linkage mechanism is installed and adjusted to achieve synchronized blade movement within the required angle tolerance. Sealing strips are fitted to blade edges and verified for continuous contact across the full blade width at the closed position.

Operating Device Installation and Calibration The handle, handwheel, or pull-cord operating device is installed and the blade angle indicator is calibrated to correspond with actual blade position within the 5 degree tolerance required by GB 50738-2011. The locking device is tested for secure engagement at multiple positions across the adjustment range.

Final Function Test Each completed Opposed Blade Manual Air Damper undergoes a full open-to-close travel test, locking device engagement verification, and blade angle indicator accuracy check before dispatch. Custom-size units are additionally verified against project-specific dimensional drawings.

Section 7: Product Features and Advantages

No Power Required — Maximum Reliability The Manual Volume Control Damper operates entirely without electrical power or control signals. There are no actuators, control boards, or wiring that can fail. Once set and locked at the commissioning position, the damper maintains its position indefinitely without any ongoing power consumption or electronic system dependency.

Stepless 0 to 90 Degree Adjustment The full 0 to 90 degree adjustment range with positive intermediate locking at any angle gives commissioning engineers precise control over airflow distribution at every branch point in the duct system. This flexibility accommodates the wide variation in branch flow requirements found in real building ventilation systems.

Opposed Blade Design for Linear Flow Control The Opposed Blade Manual Air Damper configuration produces more linear airflow-to-angle characteristics than parallel blade designs, particularly at low opening angles. This linearity makes accurate low-flow setting easier and more stable during system balancing.

Three Frame Material Options Galvanized steel, aluminum alloy, and stainless steel frame options cover the full range of building ventilation environments from standard office buildings to cleanrooms, kitchens, and industrial facilities, without requiring separate product lines for each application type.

Wide Size Range with Custom Fabrication Standard size coverage from 160×320mm to 2000×3000mm for rectangular configurations, combined with custom fabrication capability, means the HVAC Duct Airflow Balancing Damper can be matched to any duct size encountered in building projects without requiring custom ductwork modifications.

Low Airflow Resistance The streamlined blade profile minimizes pressure drop across the damper in the fully open position, ensuring the damper does not unnecessarily reduce the airflow capacity of the duct system when set to maximum open during normal operation.

Straightforward Installation and Maintenance Flanged duct connection with standard bolt fixing, no electrical wiring requirements, and simple mechanical construction allow installation by standard HVAC technicians. Maintenance requirements are limited to periodic cleaning and occasional application of lubricating oil to pivot shafts in dusty environments.

Section 8: Application Scenarios

Central Air Conditioning Supply and Return Systems The Manual Volume Control Damper is installed on supply air branch ducts and return air branch ducts throughout central air conditioning systems in office buildings, hotels, shopping centers, and hospitals. Each branch damper is set during commissioning to deliver the design airflow volume to its served zone, balancing the full system to achieve the specified indoor environmental conditions.

Mechanical Fresh Air Ventilation Systems Fresh air handling unit distribution ducts supplying individual floors, zones, or rooms in commercial and residential buildings require airflow balancing at each branch. The Opposed Blade Manual Air Damper is the standard component for this function, providing accurate, lockable airflow setting without electrical complexity.

Industrial Ventilation and Dust Extraction Systems In manufacturing facilities, airflow balance across multiple extraction hoods, workstation exhaust points, and process ventilation branches is critical to maintaining safe working environment conditions. The Manual Volume Control Damper is installed on each branch to set and maintain the required extraction volume at each point.

Laboratory and Cleanroom Ventilation Laboratory fume cupboard exhaust branches, cleanroom supply and exhaust distribution ducts, and pharmaceutical facility ventilation systems require precise airflow control and the ability to isolate individual branches during maintenance. Aluminum alloy frame configurations are preferred in cleanroom applications.

School and Educational Building Ventilation Classroom supply air systems, corridor ventilation, gymnasium exhaust, and canteen kitchen exhaust distribution all require HVAC Duct Airflow Balancing Damper installations at branch points to achieve balanced ventilation across the building.

Residential High-Rise Ventilation Corridor and common area ventilation, bathroom and kitchen exhaust riser connections, and underground car park ventilation branch ducts in high-rise residential buildings require airflow balancing at distribution points.

Human Defense Engineering Ventilation The Manual Volume Control Damper is specified for human defense engineering ventilation systems where manual switching between normal ventilation and wartime ventilation modes is required. The ability to fully close and fully open duct branches by manual operation without electrical dependency is a key requirement in this application.

System Maintenance and Service Operations Across all building types, the Opposed Blade Manual Air Damper serves a secondary function as a duct isolation device during HVAC maintenance, allowing individual branches to be closed off while the rest of the system remains operational.

Section 9: Customer Application Feedback

Our Manual Volume Control Damper products have been supplied to HVAC projects across Southeast Asia and international markets. The following reflects representative feedback from buyers and project teams:

"We used Pengkai manual volume dampers throughout a large office tower project for supply air branch balancing. The opposed blade design performed well during commissioning — adjustments were smooth and the locking devices held position reliably under fan pressure. The galvanized finish quality was consistent across the full order quantity." — HVAC Engineering Contractor, Southeast Asia

"For a hospital project, we needed dampers in three different frame materials — galvanized for general areas, stainless for kitchen exhaust, and aluminum for the cleanroom pharmacy supply system. Pengkai was able to supply all three configurations with consistent dimensional quality. Delivery and export packaging were both well handled." — Mechanical and Electrical Consultant, Regional Project

"We have standardized on Pengkai manual dampers for fresh air system branch balancing across our building portfolio. The products are straightforward to install, the blade angle indicators are accurate, and the after-sales team is responsive when we need technical support or replacement components." — Building Facilities Management Company

Section 10: Installation Guidelines

Pre-Installation Checks Verify that the damper size, frame material, operating device type, and blade seal specification match the project design documents. Inspect the frame, blade assembly, linkage mechanism, operating device, and locking device for transport damage before beginning installation.

Airflow Direction Install the Manual Volume Control Damper with the airflow direction arrow on the damper body aligned with the intended airflow direction in the duct. Reverse installation does not prevent operation but may affect sealing performance at the closed position.

Installation Orientation The damper can be installed in horizontal, vertical, or diagonal duct orientations. For large-format dampers, an independent structural support bracket should be provided to prevent duct flange stress from damper weight.

Flange Connection Connect ductwork flanges using appropriate sealing gaskets. Tighten bolts evenly in a diagonal sequence to achieve uniform gasket compression and prevent frame distortion that could affect blade travel.

Operating Device Accessibility Position the operating handle, handwheel, or pull-cord at an accessible height of 1.2 to 1.5 meters from floor level where possible. For pull-cord installations in ceiling voids, route cords to an accessible pull point at a convenient working location. Ensure a minimum clearance of 300mm around the operating device for comfortable adjustment and locking operations.

Post-Installation Commissioning After installation, perform a full manual open and close cycle to verify smooth blade travel without obstruction. Set the damper to the design airflow position as determined by test and balance measurements, engage the locking device, and mark the set position on the damper body. Document the set position in the project commissioning record.

Section 11: Maintenance Schedule

Periodic Inspection Inspect the damper frame and blade assembly for dust accumulation, corrosion, or physical damage. Verify that the locking device is engaged and the blade has not moved from the set commissioning position. Check that the operating device is free from damage and operates smoothly.

Cleaning Remove dust and debris from blade surfaces, frame interior, and linkage mechanism. Heavy dust accumulation on blades in dusty industrial environments can affect airflow characteristics and should be cleaned at regular intervals appropriate to the dust load in the environment.

Lubrication Apply a small quantity of lubricating oil to blade pivot shafts and linkage mechanism joints annually or when stiffness is observed during blade adjustment. Do not over-lubricate, as excess oil attracts dust and can cause mechanism sticking.

Locking Device Inspection Verify that the locking device engages positively at the set position and that the damper does not creep under duct air pressure. Replace the locking device if wear is observed that prevents positive engagement.

Seal Condition Inspect blade edge sealing strips for hardening, cracking, or detachment. Replace sealing strips if degradation is observed that would increase air leakage beyond the specified limit.

Section 12: Packaging, Shipping, and Lead Time

Packaging Each Manual Volume Control Damper unit is individually packaged in protective carton packaging with foam corner and edge cushioning to prevent transport damage. Larger project orders are palletized and stretch-wrapped for container loading. Export-grade outer packaging is available for sea freight shipments to Southeast Asia and international destinations.

Minimum Order Quantity We accept both small-quantity orders for project sampling and large-volume orders for full building supply contracts. Please contact our sales team to discuss project-specific requirements and volume pricing.

Lead Time Standard sizes in galvanized steel are held in warehouse stock for short lead times. Aluminum alloy, stainless steel, and custom-size configurations are produced to order, with lead times confirmed at order placement based on current production scheduling.

Shipping We ship from Dezhou, Shandong Province. Sea freight, air freight, and international express courier options are all available. We work with established freight forwarding partners serving Southeast Asia, the Middle East, and global destinations. Both FCL and LCL sea freight options are available for project-volume orders.

Sample Policy Product samples are available for pre-order quality and specification verification. Sample costs and shipping fees are agreed with buyers prior to dispatch. We recommend buyers request and inspect samples before placing full project supply orders to confirm specification compliance and build quality.

Payment Terms We support T/T bank transfer and other payment arrangements as mutually agreed. Please contact our sales team to discuss terms appropriate to your procurement process and order volume.

Section 13: Certifications and Quality Assurance

Dezhou Pengkai Air Conditioning Equipment Co., Ltd. manufactures Manual Volume Control Damper products in compliance with GB 50738-2011 and GB 50243-2016, the national standards governing manual damper operation direction, blade angle indicator accuracy, and HVAC ductwork component installation requirements. Each production batch is subject to incoming material inspection, in-process dimensional quality control, and finished product function testing before release.

Product quality documentation including material certification records, dimensional inspection records, and function test records is maintained for each production batch and is available to buyers upon request. We welcome third-party inspection arrangements for project-specific orders.
