Section 1: Product Overview

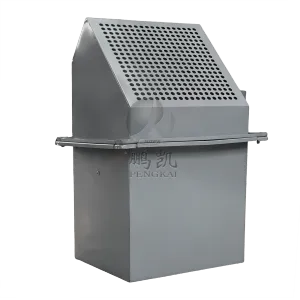

The Wall-Mounted Centrifugal Exhaust Fan is one of the most practical and widely deployed ventilation solutions for buildings where wall-penetration installation is the preferred or only available option. By mounting directly in a wall opening, the fan eliminates the need for ductwork runs from floor-mounted or ceiling-mounted equipment, reducing installation complexity and cost while placing the air discharge point exactly where it is most effective — at the wall boundary between the indoor space and the outdoor environment.

The centrifugal operating principle that defines the Wall-Mounted Centrifugal Exhaust Fan distinguishes it fundamentally from simple axial propeller wall fans. In a centrifugal fan, air enters the impeller axially at the inlet eye, and the rotating impeller blades accelerate the air radially outward, converting rotational kinetic energy into both velocity and static pressure. The resulting high static pressure at the outlet allows the fan to push air forcefully through protective grilles, rain hoods, and short external duct connections without the airflow reduction that would occur with a lower-pressure axial fan facing the same resistance.

This pressure advantage makes the Wall-Mounted Centrifugal Exhaust Fan the correct choice for applications where outlet resistance is significant — including installations with rain caps, installations in windy outdoor-facing positions, and installations requiring the air to travel a short distance after leaving the fan before reaching the true outdoor environment.

Dezhou Pengkai Air Conditioning Equipment Co., Ltd. is a comprehensive HVAC manufacturer based in Dezhou, Shandong Province, integrating research and development, production, sales, installation, and after-sales service. We supply wall-mounted ventilation fan products to building contractors, facility management companies, HVAC equipment distributors, and industrial procurement teams across Southeast Asia and global markets.

Section 2: Product Structure and Key Components

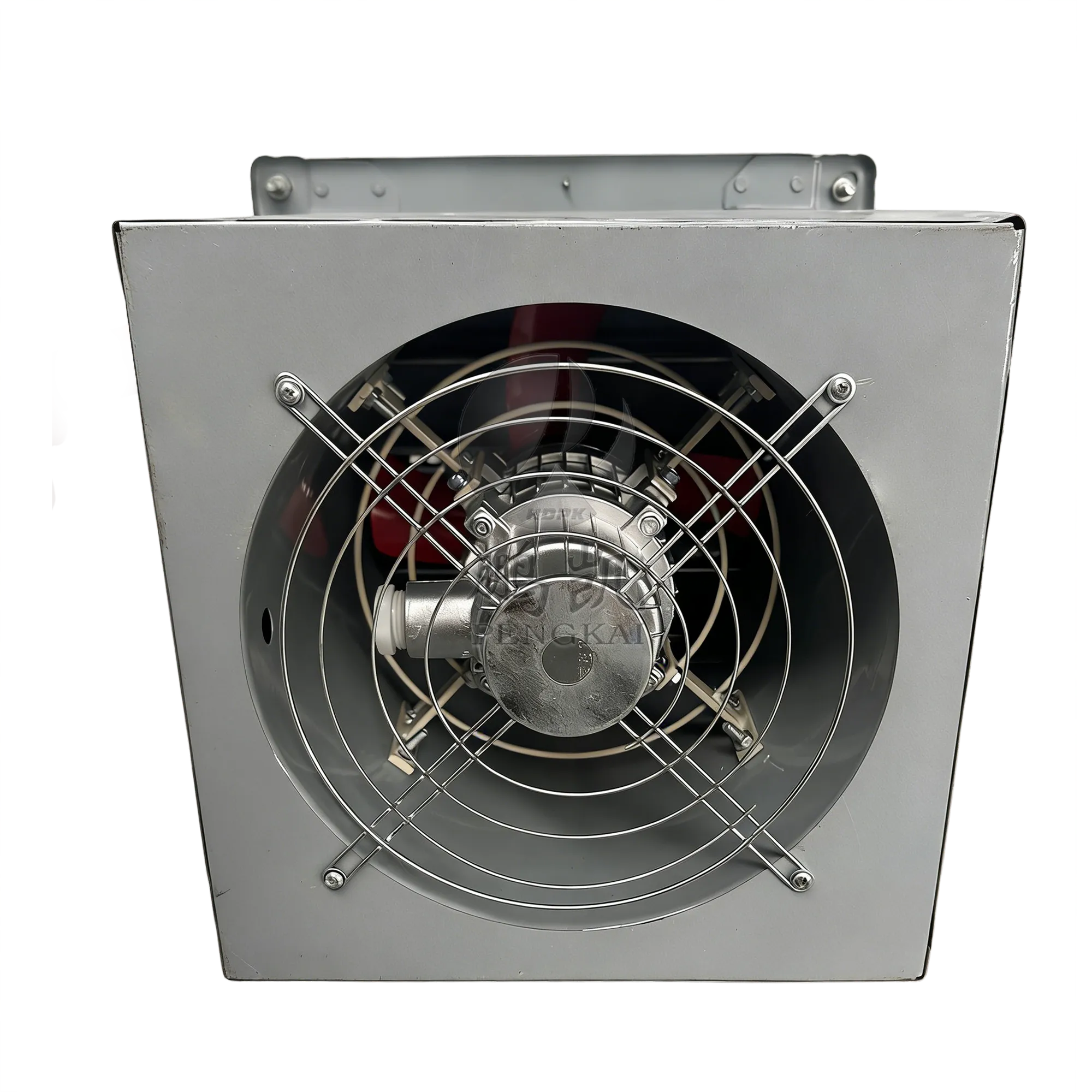

Centrifugal Impeller The impeller is the core working component of the Wall-Mounted Centrifugal Exhaust Fan. Forward-curved multi-blade or backward-curved impeller designs are available depending on the required performance characteristics. Forward-curved impellers deliver higher airflow volumes at moderate pressures and are the standard choice for general ventilation applications. Backward-curved impellers offer higher efficiency and are preferred where energy consumption over long operating hours is a priority. All impellers are dynamically balanced before assembly to minimize vibration and bearing wear during operation.

Volute Casing The spiral volute casing surrounds the impeller and collects accelerated air, converting velocity pressure into static pressure as the airflow moves toward the discharge outlet. The casing is fabricated from galvanized steel sheet with corrosion-resistant surface treatment, providing structural rigidity and long service life in indoor and semi-outdoor installation environments. The internal flow path geometry is optimized to minimize turbulence and pressure loss within the casing, contributing to overall fan efficiency.

Drive Motor The motor is matched to the impeller size and application requirements, available in single-phase 220V/50Hz and three-phase 380V/50Hz configurations. Motor protection grade is IP54 as standard, providing dust ingress protection and resistance to water splash from any direction, making the unit suitable for installation in wet, dusty, or humid environments. Insulation class F is standard, ensuring reliable motor performance across the operating temperature range. Power ratings span from 0.04kW for small residential and light commercial units to 1.5kW for larger industrial installations.

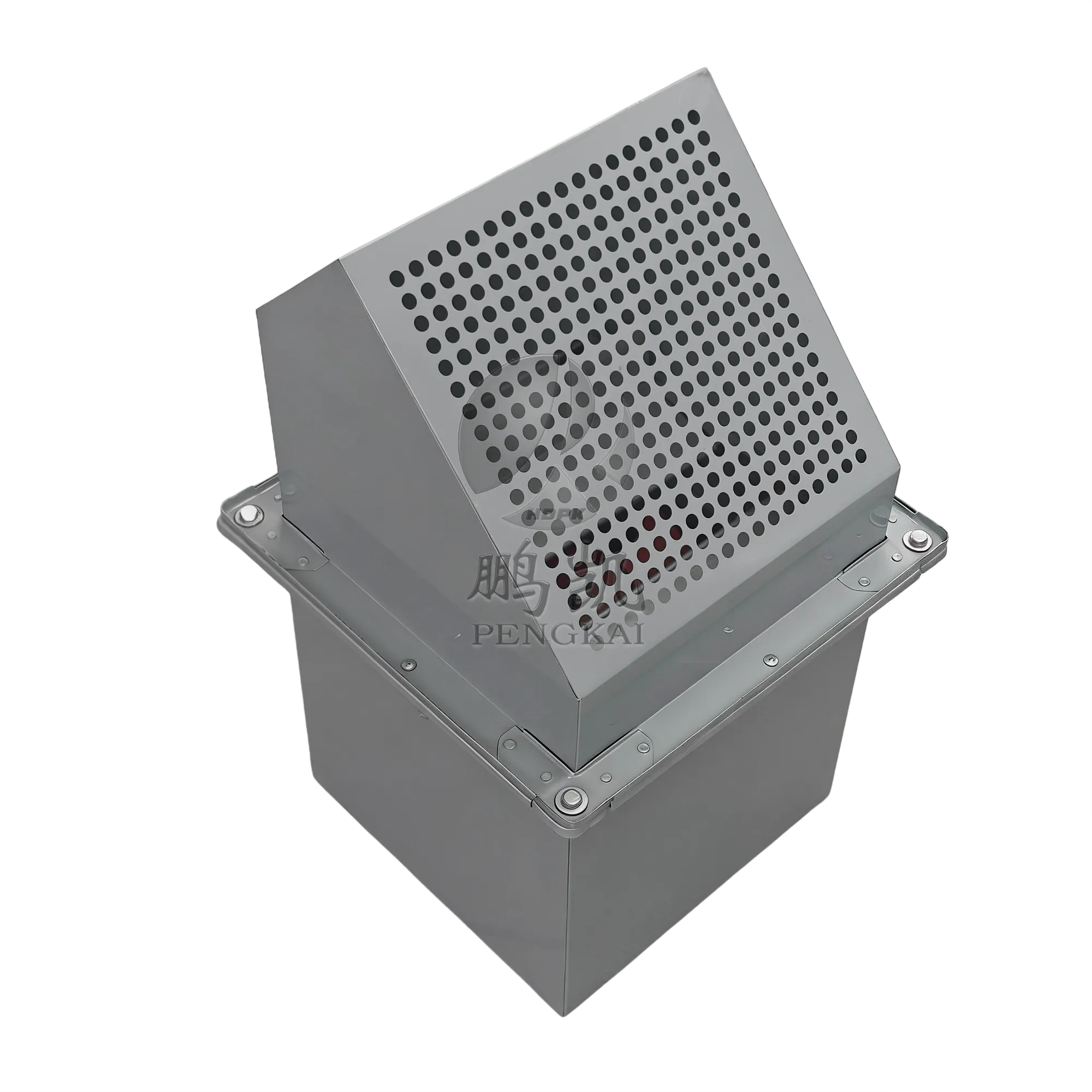

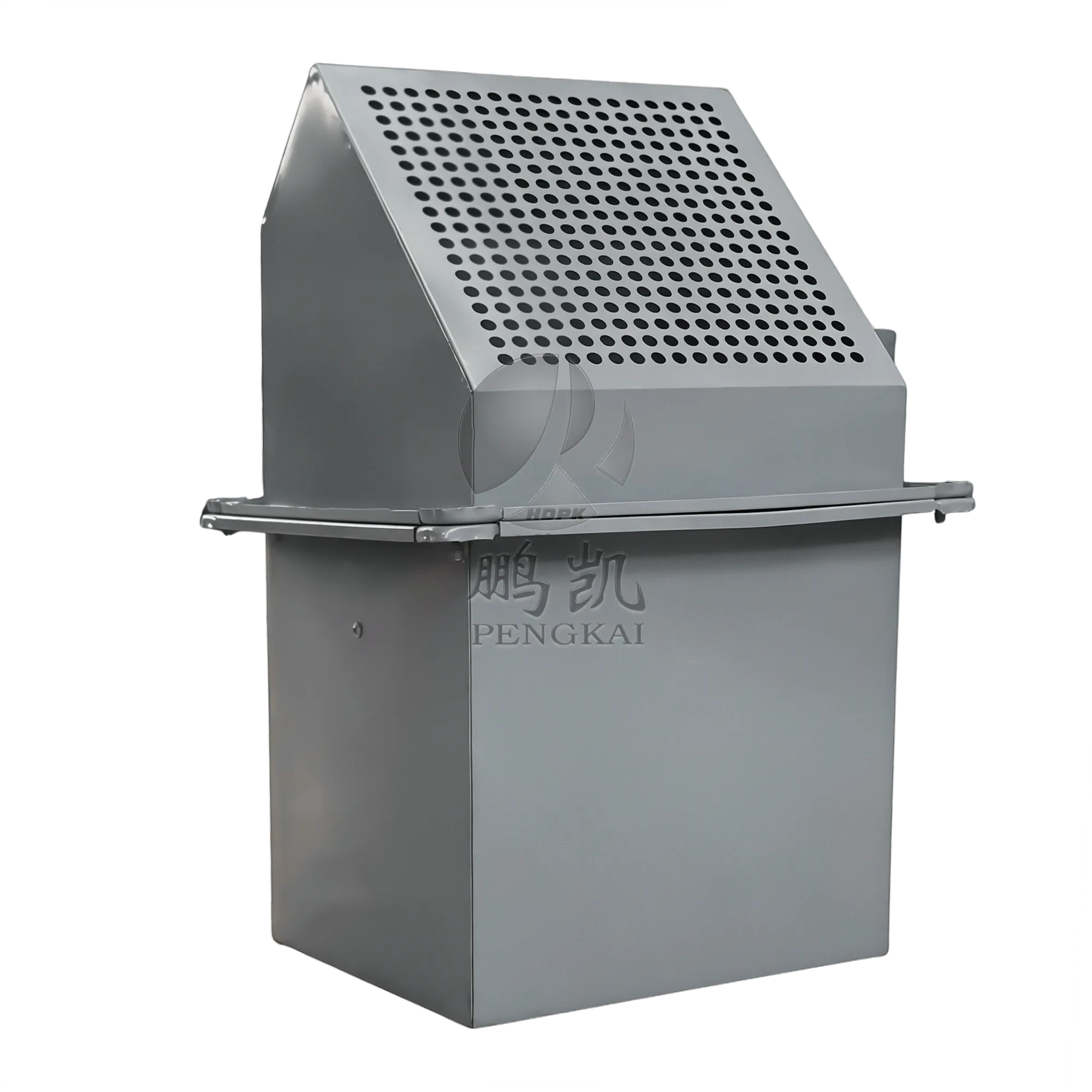

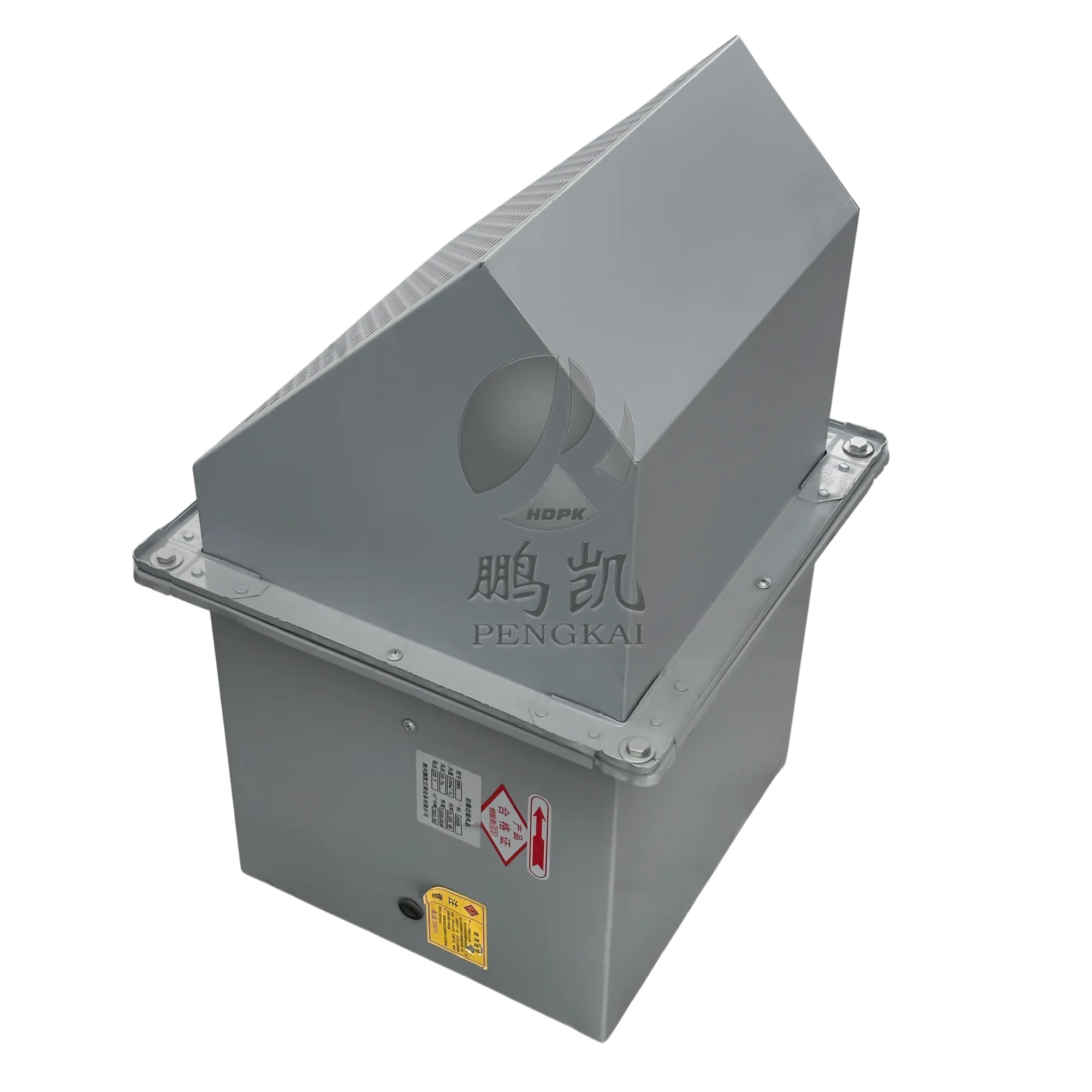

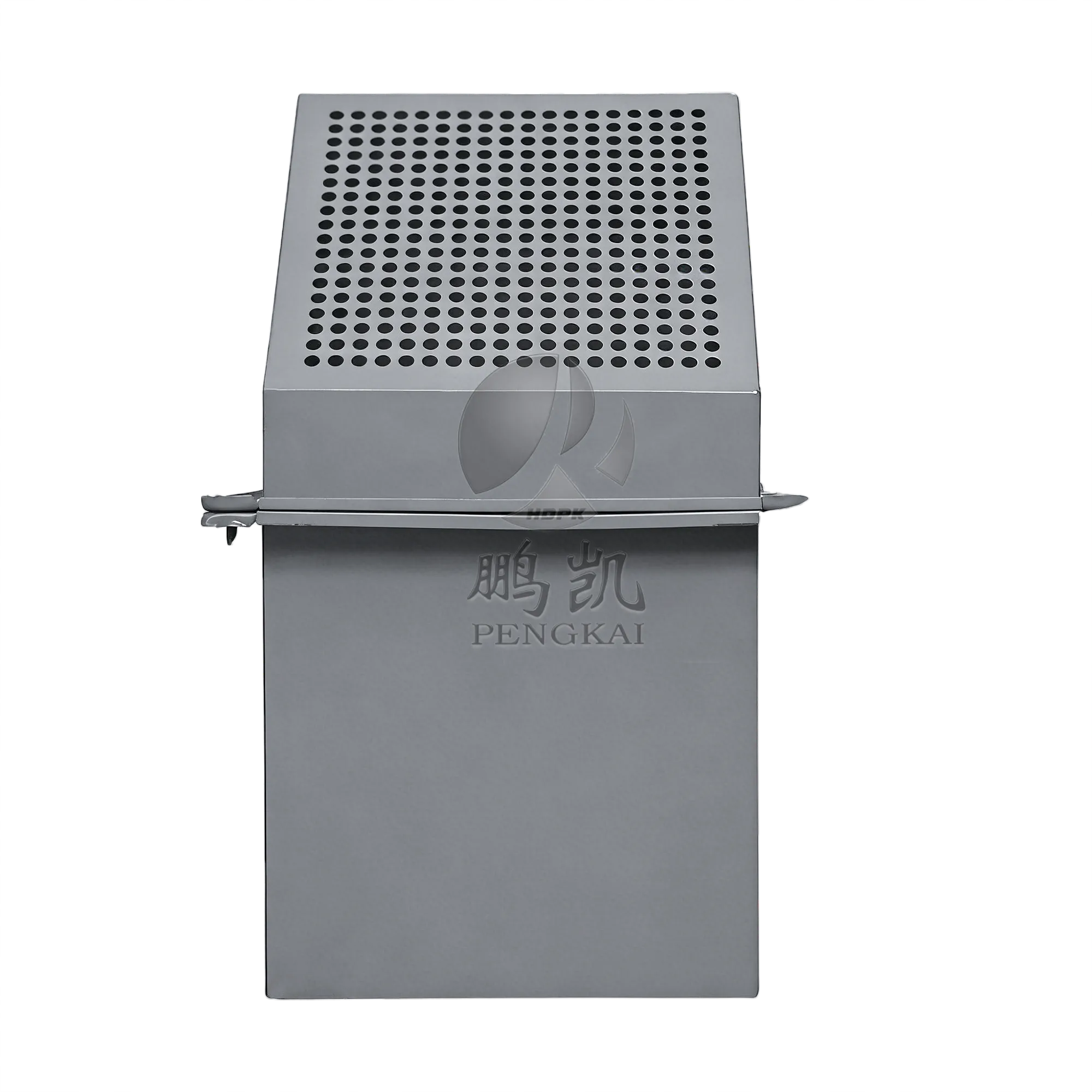

Rain-Proof Hood and Weather Protection The standard equipment rain-proof hood is mounted at the outdoor face of the fan discharge opening, preventing rainwater from entering the fan housing and ductwork during operation and when the fan is stopped. The hood design allows free airflow in the discharge direction while deflecting precipitation away from the opening. Anti-bird mesh and insect screen are fitted behind the hood to prevent wildlife and insects from entering the building through the fan opening when the fan is not operating.

Mounting Frame and Installation Hardware The fan housing includes a mounting frame or flange designed for direct fixing into a wall opening of matching dimensions. Installation anchor points are provided at standard positions to accommodate wall fixing with expansion bolts into concrete or masonry walls, or screw fixing into metal stud or timber frame wall constructions. Sealant application points are designed into the frame perimeter to allow weatherproofing of the frame-to-wall interface after installation.

Gravity or Motorized Louver — Optional An optional gravity-operated or motorized louver can be fitted at the indoor face of the fan. The gravity louver opens under airflow when the fan is operating and closes under its own weight when the fan stops, preventing backdraft, wind-driven rain ingress, cold air infiltration, and insect entry through the fan opening during shutdown periods. The motorized louver version allows the louver to be opened before fan start and closed after fan stop, providing a fully sealed opening during shutdown.

Section 3: Technical Specifications

Detailed model selection data including airflow-pressure curves and dimensional drawings are available upon request. Please contact our sales team with your required airflow volume, static pressure, and installation opening dimensions.

Section 4: Centrifugal vs Axial — Why It Matters for Wall Installation

Selecting the correct fan type for a wall-mounted application requires understanding the fundamental performance difference between centrifugal and axial operating principles. This distinction is especially important for wall-mounted installations because the fan outlet faces real-world resistances that significantly affect delivered airflow.

Axial fans move air parallel to the fan shaft axis. They are efficient at moving large volumes of air against very low resistance — open-air applications with no ductwork or obstructions. However, axial fans are highly sensitive to outlet resistance. When a rain cap, protective grille, or even moderate external wind pressure opposes the discharge, the delivered airflow drops sharply and the fan may reach stall conditions where it consumes full power while delivering minimal air movement.

Centrifugal fans accelerate air radially and discharge it at right angles to the inlet, generating substantially higher outlet static pressure for the same impeller diameter. This means the Wall-Mounted Centrifugal Exhaust Fan can maintain its designed airflow delivery even when facing the combined resistance of a rain cap, protective grille, and a moderate opposing wind. In practical wall-mounted installation conditions, this translates to more consistent and reliable ventilation performance compared to an axial fan of equivalent size.

For applications such as kitchen exhaust where grease filters add resistance, underground car park ventilation where duct connections increase system resistance, and any installation in a location exposed to prevailing winds, the centrifugal operating principle of the Industrial Wall Ventilation Fan delivers reliably superior performance compared to axial alternatives.

Section 5: How It Works — Operating Principle

Air Entry When the motor starts and the impeller begins rotating, a low-pressure zone is created at the impeller inlet eye at the center of the housing. Room air is drawn into this low-pressure zone from the indoor space through the inlet opening at the indoor face of the fan.

Centrifugal Acceleration As air enters the rotating impeller, the blades transfer rotational energy to the air, accelerating it outward along the blade surfaces. The combination of blade geometry and rotational speed determines the pressure and velocity developed at the impeller tip as air exits radially into the volute casing.

Pressure Recovery in the Volute The volute casing geometry converts the high-velocity air exiting the impeller tip into static pressure as the airflow decelerates and collects in the expanding spiral of the casing. This static pressure is what enables the Weatherproof Centrifugal Wall Fan to push air through external resistance elements such as rain hoods and grilles without significant airflow reduction.

Discharge High-static-pressure air exits the volute through the discharge outlet, passes through the rain hood and protective mesh, and is discharged to the outdoor environment. The directional discharge angle of the volute outlet can be specified to direct discharge upward, horizontally, or downward depending on installation requirements and local airflow management preferences.

Continuous Operation Under normal operating conditions, the fan runs continuously or on a timer/thermostat-controlled cycle, maintaining a steady negative pressure within the ventilated space that drives fresh outdoor air to enter through windows, doors, or dedicated fresh air inlets on the opposite side of the building, creating a complete through-flow ventilation circuit.

Section 6: Manufacturing Process and Quality Control

Dezhou Pengkai Air Conditioning Equipment Co., Ltd. applies systematic quality management throughout Wall-Mounted Centrifugal Exhaust Fan production:

Steel and Component Incoming Inspection Galvanized steel sheet, motor units, impeller materials, sealing components, and hardware are inspected against specification requirements upon receipt. Motor units are tested for insulation resistance and rated current before entering assembly. Material certification documents are retained for each production batch.

Impeller Fabrication and Dynamic Balancing Impeller blades are formed to precise geometry using tooling-controlled manufacturing processes to ensure consistent blade angle and surface profile across production runs. After assembly onto the impeller hub, each impeller undergoes dynamic balancing correction to achieve the balance grade required for smooth, low-vibration operation. Unbalanced impellers cause premature bearing wear, increased noise, and reduced motor life — dynamic balancing at this stage is essential to product reliability.

Volute Casing Fabrication Casing components are cut, formed, and welded using controlled processes to maintain the dimensional accuracy of the internal flow path geometry. Surface treatment — typically powder coating over a zinc phosphate primer — is applied after fabrication to provide corrosion resistance appropriate for the intended installation environments.

Motor Mounting and Assembly Motors are mounted and aligned within the housing to ensure concentricity between the motor shaft and the impeller hub, which is critical for minimizing vibration and ensuring consistent air clearances within the casing. Electrical connections are made to the terminal block and verified for correct phase connection and insulation integrity.

Final Function Test Each completed Weatherproof Centrifugal Wall Fan undergoes a running test to verify correct rotation direction, smooth operation without vibration or abnormal noise, and correct current draw within the rated range. Units that do not meet acceptance criteria are returned for investigation and correction before dispatch.

Section 7: Product Features and Advantages

High Static Pressure for Real-World Installation Conditions The centrifugal operating principle delivers outlet static pressure significantly higher than axial fans of equivalent size, ensuring the Wall-Mounted Centrifugal Exhaust Fan maintains its designed airflow even when facing rain hoods, grilles, filters, and external wind pressure at the discharge point.

Compact Housing for Wall Opening Installation The housing is specifically dimensioned for direct installation in wall openings, with mounting frames matched to standard wall opening sizes. No separate duct support structures or floor mounts are required, minimizing installation material and labor costs.

IP54 Weather and Dust Protection The IP54 motor protection rating ensures reliable motor operation in dusty, humid, and splash-exposed environments including kitchens, workshops, car parks, and livestock facilities.

Directional Discharge Control The volute discharge angle can be specified at the time of order to direct exhaust airflow in the most appropriate direction for the installation — upward to clear roof overhangs, horizontal to clear adjacent walls, or downward for specific applications. This directional control is not available with axial fan designs.

Gravity Louver Option for Backdraft Prevention The optional gravity louver prevents cold air infiltration, wind-driven rain ingress, and insect entry during fan shutdown periods, improving building envelope performance and occupant comfort compared to open-face axial fan installations.

Variable Speed Control Compatibility The Industrial Wall Ventilation Fan is compatible with external variable speed controllers for applications where ventilation rate needs to be adjusted based on occupancy, temperature, or process conditions. Variable speed operation also reduces noise during partial load periods.

Wide Power and Size Range The product range covers airflow requirements from small residential kitchen exhaust applications through to large industrial workshop ventilation systems, with a consistent product platform allowing the same mounting and wiring approach across the full size range.

Section 8: Application Scenarios

Industrial Workshops and Manufacturing Facilities Factory production floors, assembly areas, welding shops, and machining areas require reliable forced ventilation to remove heat, welding fumes, solvent vapors, and general air contamination. The Wall-Mounted Centrifugal Exhaust Fan is installed in the exhaust wall of the facility, drawing contaminated air out and maintaining the negative pressure that drives fresh air in through the opposite wall inlets.

Food Processing and Pharmaceutical Production Clean production environments in food processing plants and pharmaceutical manufacturing facilities require controlled ventilation that maintains positive or negative pressure conditions in production rooms. The Industrial Wall Ventilation Fan provides reliable forced exhaust in areas where hygiene standards require frequent air changes and where grease filters or HEPA pre-filters add system resistance.

Commercial Kitchen Exhaust Restaurant and commercial kitchen exhaust applications require fans capable of overcoming the combined resistance of grease filters, exhaust hoods, and short duct runs while handling warm, grease-laden air. The centrifugal operating principle is the appropriate choice for this application environment.

Underground Car Parks and Basement Facilities Underground car parks require mechanical ventilation to dilute vehicle exhaust emissions and maintain safe carbon monoxide levels. Wall-mounted installation in perimeter or intermediate walls allows the ventilation system to be configured without requiring separate plant room space. The Weatherproof Centrifugal Wall Fan handles the static pressure requirements of underground car park ventilation systems reliably.

Warehouses and Cold Storage Facilities Large warehouse spaces and cold storage ante-rooms require ventilation to manage heat buildup, humidity, and condensation. Wall-mounted centrifugal fans provide zonal ventilation coverage matched to the specific temperature and humidity management requirements of different areas.

Livestock and Agricultural Facilities Poultry houses, pig farms, greenhouse cultivation facilities, and aquaculture buildings require high-volume ventilation to manage heat, humidity, ammonia concentration, and carbon dioxide levels. The robust construction and IP54 motor protection of the Wall-Mounted Centrifugal Exhaust Fan suit the demanding and corrosive atmospheric conditions found in agricultural production environments.

Equipment Rooms and Electrical Switchrooms Transformer rooms, generator rooms, electrical switchrooms, and UPS battery rooms require ventilation to manage heat output from electrical equipment and prevent dangerous gas accumulation. Wall-mounted centrifugal fans provide reliable, compact ventilation solutions for these spaces without requiring complex duct systems.

Section 9: Customer Application Feedback

Our wall-mounted centrifugal fan products have been supplied to industrial, commercial, and agricultural projects across Southeast Asia and international markets. The following reflects representative feedback:

"We installed Pengkai wall-mounted centrifugal fans in a poultry production facility. The IP54 rating has proven important in the humid and ammonia-laden atmosphere of the facility. After two years of continuous operation, the motors remain reliable and the fans have required only basic cleaning maintenance. We have since standardized on Pengkai for our ventilation procurement." — Agricultural Facility Operator, Southeast Asia

"For an underground car park ventilation project, we needed fans that could overcome the static pressure of the grilles and rain hoods at wall discharge points. The Pengkai centrifugal wall fans delivered the required airflow at commissioning measurement. Documentation and export packaging for sea freight were both satisfactory." — HVAC Engineering Contractor, Regional Project

"We have used Pengkai Industrial Wall Ventilation Fan products in commercial kitchen exhaust applications across several restaurant fit-out projects. The fans handle grease-laden exhaust reliably, and the after-sales support for replacement parts and technical queries is responsive." — Building Services Contractor

Section 10: Installation Guidelines

Pre-Installation Checks Verify that the fan model, power supply voltage, airflow specification, and housing dimensions match the project design documents. Confirm that the wall opening dimensions are correct for the selected fan model before beginning installation. Inspect the fan housing, impeller, motor, and accessories for transport damage.

Wall Opening Preparation The wall opening should be cut or formed to the dimensions specified for the selected fan model, with smooth edges and adequate structural support retained at the opening perimeter. For masonry walls, ensure that cutting debris is fully removed from the opening before fan installation.

Fan Positioning and Leveling Insert the fan housing into the wall opening from the indoor side and adjust to level position using a spirit level. Ensure the rain hood and discharge outlet are correctly positioned on the outdoor face and that the discharge direction is as intended.

Fixing and Sealing Fix the mounting frame to the wall using expansion bolts at the specified anchor point positions. Apply sealant to the perimeter gap between the mounting frame and the wall surface on both indoor and outdoor faces to prevent air leakage and water ingress around the frame. Allow sealant to cure before operating the fan.

Electrical Connection Electrical connection must be performed by a qualified electrician in compliance with local electrical safety regulations. Verify that the supply voltage matches the motor nameplate rating. Connect the supply cable using waterproof cable gland fittings appropriate to the installation environment. Ensure reliable protective earth connection. For three-phase units, verify correct phase rotation before final fixing of the impeller guard or louver.

Rotation Direction Check Before final installation of the indoor face grille or louver, perform a brief test start and verify that the impeller rotates in the direction indicated by the arrow on the fan housing. For three-phase units, reverse any two supply phase connections if the rotation direction is incorrect.

Post-Installation Commissioning Run the fan for a minimum of 15 minutes at first start, monitoring for abnormal noise, vibration, or excessive current draw. Measure the inlet face velocity or use a flow hood to verify that the delivered airflow is consistent with the specification for the selected model and installation conditions.

Section 11: Maintenance Schedule

Monthly Visual Inspection Inspect the external rain hood, protective mesh, and indoor face grille for dust accumulation, debris blockage, or physical damage. Confirm that the impeller rotates freely when the fan is stopped by gently spinning it by hand with the power isolated.

Quarterly Cleaning Clean the impeller blades, volute casing interior, and protective screens using a soft brush and damp cloth or low-pressure compressed air. Heavy grease deposits in kitchen exhaust applications require more frequent cleaning — monthly cleaning of the impeller and casing is recommended for kitchen exhaust installations. Accumulated grease on impeller blades causes imbalance, vibration, and reduced performance.

Annual Inspection Check motor bearing condition by listening for unusual noise during operation and checking for abnormal vibration. Verify that all fixing bolts and mounting frame fasteners remain tight. Inspect sealant at the frame perimeter and reapply if cracking or detachment is observed. Check motor terminal connections for tightness and signs of overheating.

Lubrication Motors with grease nipples should be lubricated annually using the specified grease type and quantity per the motor manufacturer's recommendation. Sealed bearing motors require no periodic lubrication.

Section 12: Packaging, Shipping, and Lead Time

Packaging Each Wall-Mounted Centrifugal Exhaust Fan unit is packaged in protective carton packaging with foam corner and edge cushioning to prevent transport damage to the housing, impeller, and accessories. Accessories including rain hoods, protective screens, and mounting hardware are packed with the unit. Larger project orders are palletized and stretch-wrapped for container loading. Export-grade outer packaging is available for sea freight shipments.

Minimum Order Quantity We accept both small-quantity orders for project sampling and large-volume orders for full facility supply contracts. Please contact our sales team to discuss project-specific requirements and volume pricing.

Lead Time Standard models in common sizes and voltage configurations are held in warehouse stock for short lead times. Non-standard voltage, special motor configurations, and sizes outside the standard range are produced to order with lead times confirmed at order placement.

Shipping We ship from Dezhou, Shandong Province. Sea freight, air freight, and international express courier options are all available. We work with established freight forwarding partners serving Southeast Asia, the Middle East, and global destinations. Both FCL and LCL sea freight options are available for project-volume orders.

Sample Policy Product samples are available for pre-order quality and specification verification. Sample costs and shipping fees are agreed with buyers prior to dispatch. We recommend buyers request and inspect samples before placing full project supply orders to confirm specification compliance and build quality.

Payment Terms We support T/T bank transfer and other payment arrangements as mutually agreed. Please contact our sales team to discuss terms appropriate to your procurement process and order volume.

Section 13: Certifications and Quality Assurance

Dezhou Pengkai Air Conditioning Equipment Co., Ltd. manufactures wall-mounted centrifugal fan products in compliance with applicable national standards for industrial ventilation fans. Each production batch is subject to incoming material inspection, in-process fabrication quality control, dynamic balance verification of impeller assemblies, and finished product running tests before release.

Product quality documentation including material certification records, dynamic balance test records, and finished product test records is maintained for each production batch and is available to buyers upon request. We welcome third-party factory inspection and pre-shipment product testing arrangements for project-specific orders.
