Section 1: Product Overview

The Stainless Steel Water Storage Tank represents the contemporary standard for building water supply storage, fire suppression water reserves, HVAC system water storage, and industrial process water containment. Its widespread adoption across commercial construction, residential development, industrial facilities, and municipal infrastructure since replacing concrete and galvanized steel tanks as the dominant technology reflects a combination of material performance advantages that these alternatives cannot match simultaneously — hygiene compliance, structural durability, installation flexibility, maintenance simplicity, and long service life in a single product.

The fundamental difference between a stainless steel tank and its predecessors is the nature of the tank material's interaction with stored water. Concrete tanks progressively leach lime and may harbor microbial growth in surface porosity. Galvanized steel tanks corrode from the inside as the zinc coating depletes, ultimately contaminating stored water with iron and rust products. Fiberglass tanks are non-corrosive but can release styrene residuals into water and are vulnerable to impact and UV degradation. The Stainless Steel Water Storage Tank avoids all of these failure modes — the dense chromium oxide passive film that forms spontaneously on stainless steel surfaces creates a stable, non-reactive interface between the steel and the stored water that self-regenerates if scratched or disturbed, requiring no maintenance coating, no scheduled re-lining, and no replacement due to corrosion throughout the tank's designed service life.

The practical consequence of this material advantage is a tank that consistently delivers water quality that meets national drinking water hygiene standards for its full service life of 15 to 20 years or more, without the progressive water quality degradation that characterizes the aging of concrete and galvanized steel tanks. For building operators and facility managers, this translates directly into reduced operating costs, reduced liability exposure related to water quality complaints, and reduced frequency of tank replacement capital expenditure.

Dezhou Pengkai Air Conditioning Equipment Co., Ltd. is a comprehensive HVAC manufacturer based in Dezhou, Shandong Province, integrating research and development, production, sales, installation, and after-sales service. We supply stainless steel water tank products to building contractors, water supply system engineers, fire protection contractors, HVAC system integrators, and facility operators across Southeast Asia and global markets.

Section 2: Material Grades and Selection Guide

The selection of stainless steel grade for a water storage tank is determined by the specific combination of water quality, environmental conditions, and intended stored medium that the tank will encounter. Understanding the properties of each available grade is essential for correct specification.

SUS304 — Standard Grade for Potable Water Applications SUS304 (06Cr19Ni10) is the most widely specified grade for potable water storage tanks in building applications. The nominal composition of 18% chromium and 8% nickel provides corrosion resistance that is adequate for municipal tap water, treated groundwater, and rainwater storage in indoor and sheltered outdoor environments. SUS304 meets the requirements of national food-grade stainless steel standards and is the correct specification for residential secondary water supply tanks, hotel water storage, hospital water supply, school Water Tanks, and the majority of commercial building potable water storage applications. This is the grade used in the SUS304 Drinking Water Tank standard product range.

SUS316L — Enhanced Grade for Demanding Environments SUS316L adds 2 to 3 percent molybdenum to the SUS304 composition, providing significantly improved resistance to chloride ion-induced pitting corrosion. This enhancement is required when the tank is exposed to elevated chloride concentrations in the stored water — common in coastal regions where seawater influences municipal water supply — or when the tank is installed in a high-humidity saline outdoor environment such as rooftop installations in coastal cities, marine industrial facilities, or food processing environments with high chloride cleaning agent use. SUS316L is the appropriate specification for these demanding conditions where SUS304 would be susceptible to pitting corrosion over time.

SUS201 — Cost-Optimized Grade for Non-Potable Industrial Applications SUS201 is a lower-cost austenitic stainless steel that substitutes manganese and nitrogen for a portion of the nickel in the SUS304 composition. While providing adequate corrosion resistance for non-potable industrial water storage in non-saline environments, SUS201 is not appropriate for drinking water applications and is not recommended for coastal or high-chloride environments. Its application is limited to industrial process water, HVAC circulation water, and general non-potable storage where cost reduction is a priority and water quality hygiene standards are not the governing requirement.

Plate Thickness by Position For structural integrity and pressure resistance, different panel positions in the tank use different plate thicknesses. Base plates — which bear the full hydrostatic load of the water column above — use the thickest material, typically 1.5mm for standard tanks. Side panels use intermediate thickness, and roof panels use the thinnest material as they bear only light structural loads. This graduated thickness specification achieves the optimal balance between structural performance and material efficiency.

Section 3: Product Types and Configuration Guide

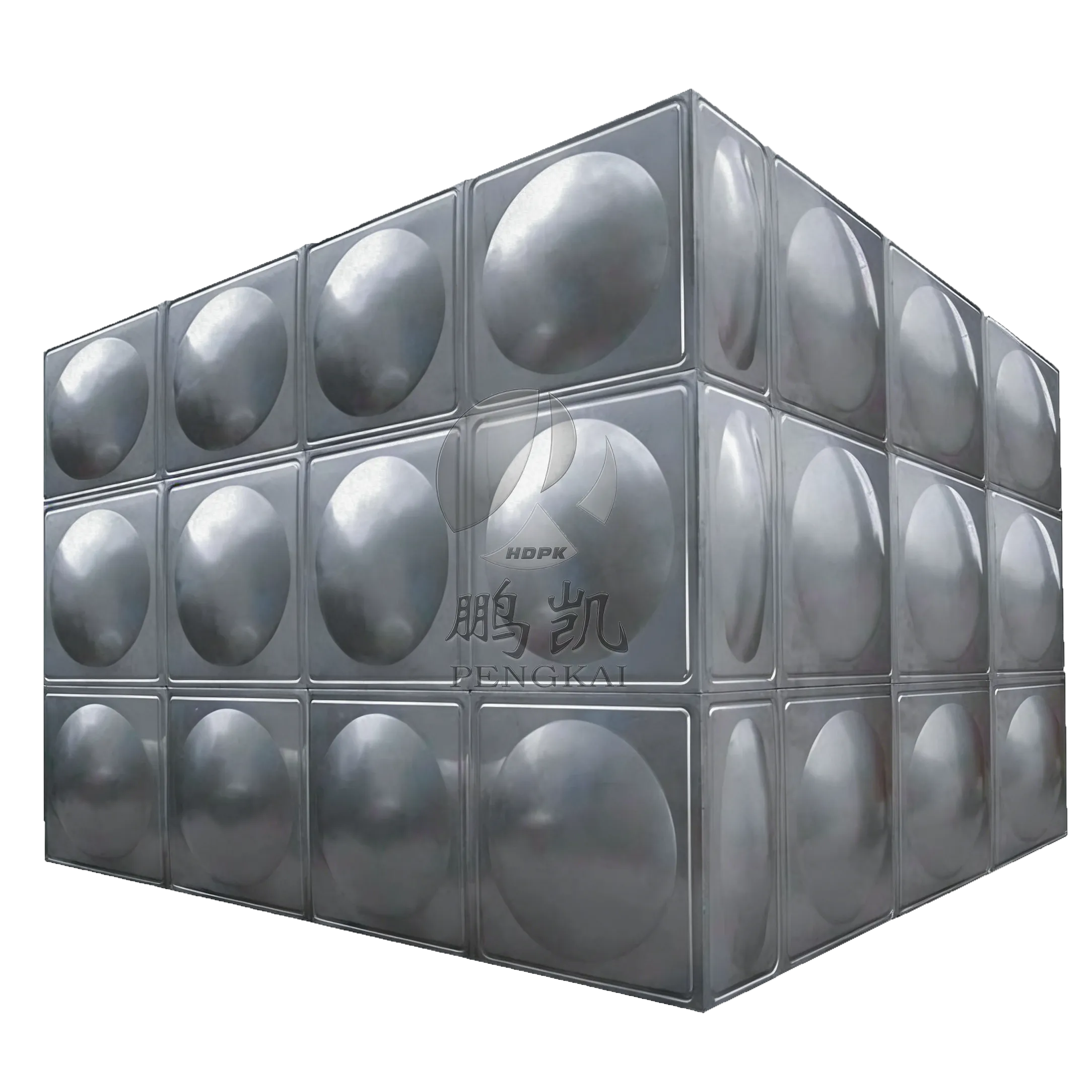

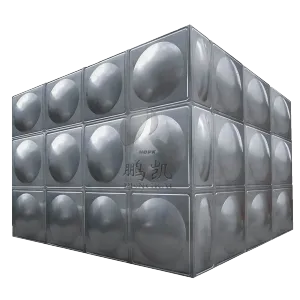

Square Modular Assembled Configuration The square modular assembled configuration is the most widely specified type for building water supply and fire suppression applications. Standard pressed panels — typically 1m × 1m and 1m × 0.5m — are connected by stainless steel bolts through flanged edges, with food-grade rubber sealing gaskets at all panel joints. This modular approach allows the tank capacity to be adjusted in standard increments to match the required storage volume precisely, and the individual panel size allows the tank to be transported through standard building access routes and assembled in the installation space — a critical advantage for rooftop installations, basement plant rooms, and other locations that cannot accommodate pre-assembled vessels. The Modular Assembled Stainless Steel Tank can be sized from a few cubic meters to hundreds of cubic meters within the same product platform.

Vertical Cylindrical Configuration The vertical cylindrical configuration uses a circular cross-section body fabricated by rolling and welding, providing maximum structural efficiency relative to material weight for a given storage volume. The circular geometry allows the cylinder wall to carry hoop stress uniformly without requiring internal reinforcement members, making the vertical cylinder the most weight-efficient tank form and particularly suited to installations where building structural load limits are a concern. Vertical cylindrical tanks are appropriate for medium-capacity storage in locations with adequate floor plan area for the tank footprint.

Horizontal Cylindrical Configuration The horizontal cylindrical configuration places the cylinder axis horizontally, reducing the installation height requirement at the cost of increased floor plan footprint. This configuration is suited to basement installations, underground vaults, and other locations where vertical clearance is limited but floor plan area is available.

Welded Configuration The welded configuration produces an integrated tank body with no bolted panel joints, achieving the highest possible water containment integrity and structural rigidity. Welded tanks are the appropriate specification for high-rise building fire suppression tanks where system pressure requirements exceed the capability of bolted panel joints, for tanks storing treated or purified water where any risk of contamination at panel joints must be eliminated, and for tanks requiring custom-geometry configurations that cannot be achieved with standard modular panels.

Thermally Insulated Configuration The insulated configuration adds a layer of polyurethane foam or equivalent thermal insulation material between the inner tank body and an outer protective casing, reducing heat gain from the surrounding environment in hot weather storage and preventing heat loss and freezing risk in cold climate outdoor installations. This configuration is applied to solar hot water system storage tanks, air source heat pump water heater storage tanks, and outdoor tanks in regions where ambient temperature drops below freezing during winter months.

Section 4: Technical Specifications

Custom capacity, panel thickness, fitting configuration, and insulation specification are available. Please contact our sales team with your required capacity, installation space dimensions, water quality parameters, and applicable standards for detailed product specification.

Section 5: How the Passive Film Protects Water Quality

The corrosion resistance and water quality safety of the Stainless Steel Water Storage Tank are both derived from the same surface chemistry phenomenon — the spontaneous formation and self-maintenance of a chromium oxide passive film on the stainless steel surface.

Formation of the Passive Film When stainless steel containing a minimum of approximately 10.5% chromium is exposed to an oxygen-containing environment — including water — the chromium in the surface layer preferentially reacts with available oxygen to form chromium oxide (Cr₂O₃). This oxide layer is extremely thin — typically 1 to 3 nanometers — but is dense, adherent, and chemically stable. It forms a continuous barrier between the steel substrate and the stored water, preventing the iron in the steel from oxidizing to form rust products.

Self-Regeneration After Surface Damage The most practically important property of the passive film for water storage applications is its ability to regenerate spontaneously when disrupted. If the film is scratched, abraded, or locally disrupted during installation, cleaning, or maintenance, it reforms within seconds in the presence of water and dissolved oxygen. This self-healing capability means that the corrosion protection of the SUS304 Drinking Water Tank is not permanently impaired by the routine surface contact that occurs during installation and maintenance, unlike applied coatings which once scratched or chipped leave the underlying metal permanently exposed.

Why This Matters for Water Quality The intact passive film on SUS304 stainless steel presents a chemically inert surface to the stored water. No iron ions, chromium ions, or nickel ions migrate from the surface into the water at meaningful concentrations under normal storage conditions. This absence of metal ion leaching is the basis for food-grade certification of SUS304 stainless steel for drinking water contact applications. The smooth, non-porous nature of the passive film surface also means that algae, bacteria, and biofilm cannot establish anchor points on the stainless steel surface as they can on the rough, porous surfaces of concrete tanks — further supporting the water quality maintenance function of the material.

Section 6: Manufacturing Process and Quality Control

Dezhou Pengkai Air Conditioning Equipment Co., Ltd. applies systematic quality management throughout Stainless Steel Water Storage Tank production:

Steel Incoming Inspection All incoming stainless steel sheet is verified for grade certificate compliance, dimensional accuracy, and surface condition. Material test certificates confirming chemical composition and mechanical properties are retained for each supply batch.

Panel Pressing and Profile Verification Standard modular panels are pressed to the specified dome or corrugated profile that provides structural rigidity to each panel against hydrostatic pressure. Profile dimensional accuracy is verified after pressing to confirm correct geometry for consistent panel-to-panel joint alignment at assembly.

Welded Tank Fabrication For welded configurations, plates are cut, formed, and assembled with full-penetration welds at all structural joints. Internal weld seam finish is ground smooth to eliminate surface irregularities that could trap contamination or create stress concentration points. Welded joints undergo visual inspection and, for critical applications, non-destructive testing to verify weld integrity.

Hydraulic Pressure Test All completed tanks — both modular assembled and welded configurations — undergo a 24-hour hydraulic pressure test at rated working pressure before dispatch. This test verifies zero leakage at all panel joints, welded seams, fitting connections, and gasket interfaces before the tank is accepted for supply.

Surface Passivation Treatment Completed tank internal surfaces receive a passivation treatment — typically citric acid or nitric acid solution application per the applicable standard — to remove any surface iron contamination from fabrication processes and ensure the chromium oxide passive film is fully developed before the tank enters service. Passivation is particularly important for welded tanks where heat-affected zones adjacent to welds may have locally depleted surface chromium.

Final Inspection All fittings, gaskets, bolts, and accessories are verified for correct specification and installation before dispatch. Dimensional verification confirms that the assembled tank matches the order specification. Documentation including material certificates, pressure test records, and passivation treatment records is prepared for supply with the tank.

Section 7: Product Features and Advantages

15 to 20 Year Service Life Without Re-Lining The self-renewing passive film protection means the Modular Assembled Stainless Steel Tank does not require periodic internal re-coating or re-lining to maintain water containment and water quality performance, unlike concrete tanks that require periodic lime washing and galvanized tanks that require re-coating when the zinc layer depletes. The absence of re-lining requirements reduces the total cost of ownership significantly compared to these alternatives over the service life of the tank.

Water Quality Compliance Throughout Service Life The non-reactive stainless steel surface maintains consistent compliance with national drinking water hygiene standards from first fill to end of service life, without the progressive water quality deterioration that characterizes aging concrete and galvanized steel tanks. Building operators can be confident that stored water quality meets regulatory requirements without requiring the chemical treatment of stored water that aging concrete tanks often necessitate.

Weight Advantage Over Concrete The Stainless Steel Water Storage Tank weighs approximately one-quarter to one-third of the equivalent capacity concrete tank, imposing significantly lower structural loads on the building floor or roof structure at the installation position. This weight advantage reduces or eliminates the need for structural reinforcement at the installation position, reducing civil engineering cost and enabling installations that would not be structurally feasible with concrete tanks.

Modular Capacity Flexibility The standard modular panel system allows any required capacity to be assembled from standard components, and allows capacity to be increased after initial installation by adding additional panels — an advantage in applications where future water demand growth may require expanded storage capacity.

Rapid On-Site Assembly Individual modular panels are sized for manual handling and pass through standard doorways and access routes, allowing the tank to be assembled in the installation space from components brought in through normal building access without requiring craneage or structural openings. Assembly time for a standard modular tank is significantly shorter than the curing and finishing time required for a concrete tank of equivalent capacity.

Comprehensive Fitting Options Standard and optional fittings — manhole for internal access and maintenance, vent valve for pressure equalization, inlet and outlet connections, drain outlet, level gauge port, float valve, electronic level monitoring, access ladder — allow the SUS304 Drinking Water Tank to be configured to match any operational requirement from simple gravity-fed supply to fully automated level-controlled systems integrated with building management platforms.

Section 8: Application Scenarios

Residential Building Secondary Water Supply Multi-story residential buildings use secondary water supply tanks to buffer municipal supply pressure and provide storage capacity for daily water demand. The Stainless Steel Water Storage Tank in square modular assembled configuration is the standard specification for rooftop and basement water supply tanks in residential developments, providing potable water storage that maintains hygiene compliance over the building's service life.

Hotel and Hospitality Building Water Supply Hotels require reliable potable water storage with consistent water quality for guest use across all floor levels. The demanding hygiene standards of hotel water supply — where guest complaints about water quality have significant reputational and regulatory consequences — make the water quality maintenance performance of the SUS304 Drinking Water Tank particularly valuable in this application.

Fire Suppression Water Storage Building fire suppression systems require dedicated water storage that is maintained at specified minimum volumes at all times and can deliver water at required flow rates on demand during fire events. The welded stainless steel configuration provides the leak-free containment and structural integrity required for fire suppression storage, and the food-grade material avoids contamination of the stored water that could compromise sprinkler and hose reel system function.

Hospital and Healthcare Facility Water Supply Hospitals require water supply systems that meet the highest potable water hygiene standards, with particular attention to preventing Legionella bacteria growth in stored water. The smooth, non-porous stainless steel surface of the Modular Assembled Stainless Steel Tank inhibits biofilm formation — the precondition for Legionella colonization — more effectively than concrete or galvanized surfaces, supporting compliance with healthcare facility water safety management plans.

HVAC and Cooling System Water Storage Commercial and industrial HVAC systems require water storage for chilled water system makeup, cooling tower makeup, and thermal storage applications. SUS316L grade tanks are specified for cooling tower makeup water storage in coastal or industrial environments where chloride ion concentrations in the makeup water would risk pitting corrosion of SUS304 material.

Industrial Process Water and Food Processing Food processing facilities, pharmaceutical production plants, beverage manufacturing operations, and electronics manufacturing facilities require process water storage that meets food-grade hygiene standards and does not contaminate the production water with corrosion products or surface coatings. The food-grade certification of SUS304 and SUS316L stainless steel supports these demanding application requirements.

Municipal and Public Infrastructure Water Storage Municipal water distribution systems, public sports facilities, transportation hub water supply, and institutional building water infrastructure all require large-capacity water storage that maintains public health water quality standards. Larger capacity configurations of the Stainless Steel Water Storage Tank serve these high-volume public infrastructure applications.

Section 9: Customer Application Feedback

Our stainless steel water tank products have been supplied to residential, commercial, industrial, and institutional projects across Southeast Asia and international markets:

"We specified Pengkai SUS304 stainless steel water tanks for a 350-unit residential tower project. The modular panel system allowed us to bring all components through the building access routes to the rooftop plant room — no crane openings required. Assembly was completed ahead of schedule and all tanks passed the 24-hour pressure test first time. Three years into operation, the building management team has reported no water quality issues and no maintenance other than routine filter cleaning." — Building Services Contractor, Residential Tower Project, Southeast Asia

"For a hospital expansion project with strict Legionella management requirements, we specified Pengkai Stainless Steel Water Storage Tank units in SUS304 for all potable water storage positions. The smooth internal surface and correct tank design contributed to our Legionella risk assessment compliance. The after-sales team provided complete documentation for our water safety plan submission." — MEP Consultant, Healthcare Facility Project

"We have standardized on Pengkai stainless steel water tanks for the fire suppression storage systems of our commercial development portfolio. The welded configuration quality is consistent, the hydraulic pressure test records are supplied with every delivery, and the technical support for system sizing questions is knowledgeable and responsive." — Fire Protection Engineering Contractor

Section 10: Installation Guidelines

Foundation and Base Frame The installation foundation must be a level, structurally adequate reinforced concrete base or steel frame support capable of carrying the full weight of the tank and its maximum water content. The foundation design must account for the concentrated loads at the tank base frame support points, not just the distributed weight. For rooftop installations, a structural engineer must verify that the roof structure can carry the full water-filled tank load. The base frame — channel steel or stainless steel section — must be positioned level in all directions before panel assembly begins, as leveling corrections after assembly are difficult.

Modular Panel Assembly All panel joint surfaces must be clean, dry, and free from debris before assembly. Food-grade rubber gaskets are positioned at all panel joints per the assembly drawing, with no folds, gaps, or overlaps. Stainless steel bolts are tightened evenly in a star pattern around each joint to achieve uniform gasket compression — uneven tightening produces non-uniform gasket compression that leads to local leakage at the joint. Internal stainless steel tie rods and columns are installed at the positions specified in the assembly drawing for the relevant capacity configuration.

Fitting Installation All manhole, vent valve, inlet, outlet, drain, and level gauge fittings are installed with new sealing gaskets of the correct specification material — food-grade rubber for potable water applications. Fitting connections are tightened to the specified torque to achieve sealing without over-compression of gaskets.

24-Hour Water Test Before Service Entry After assembly and fitting installation, the tank is filled progressively — to one-third capacity for an initial 30-minute inspection, then to two-thirds, then to full capacity — with each stage held for leak inspection before continuing. The full tank is held for 24 hours with final inspection of all joints, welds, and fittings for any sign of leakage before the tank is accepted for service entry.

Disinfection for Potable Water Applications Before first use for potable water storage, the tank interior is disinfected by filling with water containing chlorine disinfectant at 50 to 100 mg/L concentration, holding for a minimum of 30 minutes, draining completely, and flushing with clean water two to three times until no chlorine odor remains.

Section 11: Maintenance Schedule

Weekly External Inspection Inspect the tank exterior, base frame, and surrounding area for signs of leakage at joints or fittings, corrosion at the base frame, or debris accumulation around the tank. Verify that the vent is unobstructed and the float valve or level control is operating correctly.

Quarterly Internal Cleaning — Potable Water Tanks Drain the tank, enter through the manhole with appropriate safety precautions including ventilation, clean internal surfaces using soft cloths or sponges with clean water — never abrasive tools that would damage the passive film — and flush with clean water before refilling. Inspect all internal surfaces for any signs of discoloration, staining, or surface damage.

Annual Inspection Inspect all panel joint gaskets for condition — signs of hardening, cracking, or extrusion indicate that replacement is required before leakage develops. Check all bolts at panel joints and fitting connections for tightness. Verify float valve, level gauge, and level alarm function. Inspect the base frame and support structure for corrosion or settlement.

Section 12: Packaging, Shipping, and Lead Time

Packaging Modular panels are individually wrapped in protective film and packed in wooden crates or steel-banded bundles appropriate to panel size and quantity. Fittings, gaskets, bolts, and assembly hardware are packed in separate labeled cartons within the shipment. Export-grade packaging is standard for all international orders.

Lead Time Standard capacity modular assembled configurations in SUS304 are available with short lead times from production scheduling. SUS316L grade, welded configurations, insulated configurations, and custom capacity specifications are produced to order with lead times confirmed at order placement.

Shipping We ship from Dezhou, Shandong Province. Sea freight is the standard mode for international orders due to the size and weight of tank components. We work with established freight forwarding partners serving Southeast Asia, the Middle East, and global destinations. FCL sea freight is recommended for complete tank orders.

Sample Policy Representative panel samples and fitting samples are available for pre-order quality verification. Sample costs and shipping fees are agreed prior to dispatch.

Payment Terms We support T/T bank transfer and other payment arrangements as mutually agreed. Please contact our sales team for terms appropriate to your project order value and procurement process.

Section 13: Certifications and Quality Assurance

Dezhou Pengkai Air Conditioning Equipment Co., Ltd. manufactures stainless steel water tank products in compliance with GB/T 12337 and the applicable national standards for drinking water contact materials. Production quality management covers steel incoming inspection with material certificate verification, hydraulic pressure testing of every completed tank, passivation treatment of internal surfaces, and comprehensive fitting and gasket inspection. Material certificates, pressure test records, and passivation treatment records are supplied with every order. We welcome third-party pre-shipment inspection for project-specific orders.
