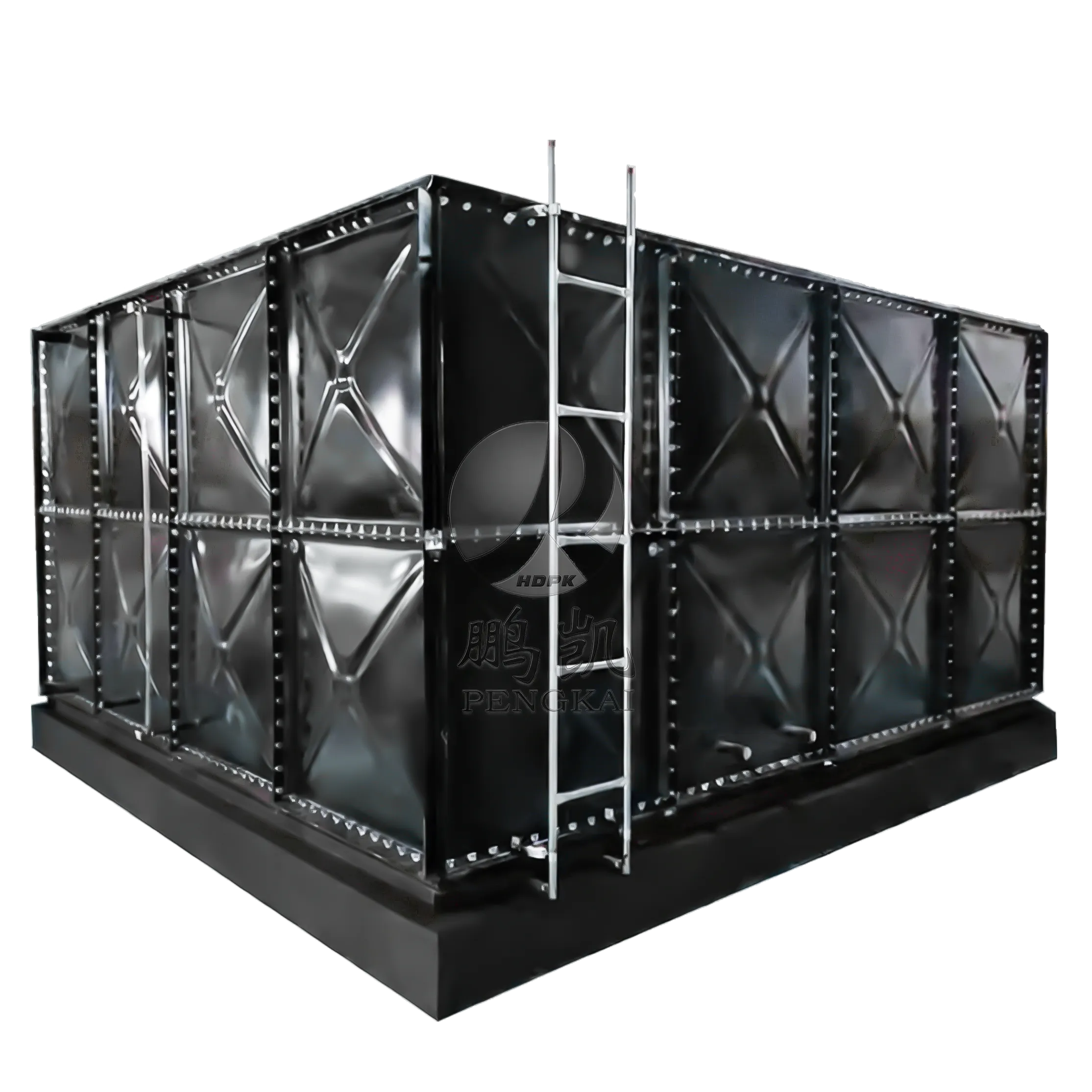

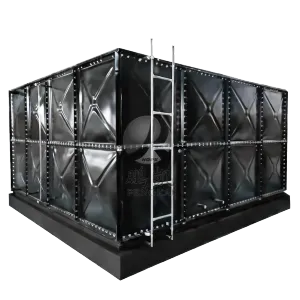

Section 1: Product Overview

The Enamel Coated Water Storage Tank represents a distinct and technically sophisticated approach to water storage engineering that addresses a specific set of performance requirements — long-term corrosion resistance, drinking water hygiene compliance, structural load capacity, and large-scale modular installation flexibility — through the combination of two fundamentally different materials: a structural carbon steel base and a vitreous enamel ceramic surface layer permanently fused to the steel by high-temperature firing.

This dual-material engineering approach solves a fundamental limitation of both of its component materials in isolation. Carbon steel alone is an efficient structural material for Water Tanks — it is strong, formable, weldable, and economical — but its corrosion vulnerability in contact with water means that a carbon steel tank without surface protection would have a service life measured in years rather than decades. Vitreous enamel alone provides exceptional chemical resistance and hygiene surface properties, but it is a brittle material that cannot be formed into structurally capable tank panels. The Enamel Coated Water Storage Tank combines the structural capability of the steel substrate with the corrosion resistance and hygienic surface properties of the enamel coating, producing a product whose performance exceeds what either material could deliver alone.

The comparison with pure stainless steel tanks is instructive. Stainless steel achieves corrosion resistance through an inherent metallurgical mechanism — the passive chromium oxide film — that functions without a separate applied surface layer. Enamel steel tanks achieve comparable corrosion resistance through a different mechanism — the physically applied and fired ceramic coating — which provides specific performance advantages in environments where stainless steel is vulnerable. In coastal and high-chloride environments, stainless steel — particularly SUS304 — is susceptible to pitting corrosion initiated by chloride ion attack on the passive film. The vitreous enamel surface of the Vitreous Enamel Steel Water Tank is a glass-like ceramic that is chemically inert to chloride ions and does not experience the pitting mechanism, making it the technically superior specification for water storage in high-chloride atmospheric environments.

Dezhou Pengkai Air Conditioning Equipment Co., Ltd. is a comprehensive HVAC manufacturer based in Dezhou, Shandong Province, integrating research and development, production, sales, installation, and after-sales service. We supply enamel water tank products to building contractors, water supply engineers, fire protection contractors, and facility operators across Southeast Asia and global markets.

Section 2: Material Structure and the Enamel Firing Process

Understanding the enamel coating's performance properties requires understanding how the coating is produced, because the properties of the finished enamel layer are inseparable from the manufacturing process that creates it.

Q235 Carbon Steel Base Plate The structural substrate is Q235 grade carbon steel sheet, a standard structural carbon steel with defined yield strength and tensile strength that provides the mechanical load-bearing capability of the tank panels. Q235 is selected for its combination of adequate strength for water tank structural applications, good cold-forming characteristics that allow panels to be pressed to the required corrugated or dome profile for structural rigidity, and reliable surface preparation response that achieves the adhesion quality required for the enamel firing process. Panel thickness is specified to match the hydrostatic pressure load at each position in the tank — thicker panels at the base where hydrostatic pressure is highest, thinner panels at the upper levels and roof.

Ground Coat and Cover Coat Application The enamel coating process begins with thorough surface preparation of the steel panels to remove mill scale, oils, and surface contaminants that would impair adhesion. A ground coat enamel slip — a water-based suspension of finely ground enamel glass powder with adhesion-promoting metallic oxides — is applied uniformly across the panel surfaces and dried. A cover coat enamel slip — formulated for chemical resistance, surface smoothness, and the specified color — is applied over the dried ground coat. The multi-coat system ensures complete surface coverage and the chemical resistance properties required for water contact applications.

High-Temperature Firing at 850 to 900°C The coated panels are fired in a controlled-atmosphere furnace at 850 to 900°C. At this temperature, the enamel glass powder melts into a viscous liquid that flows across the panel surface, wets the steel substrate, dissolves the ground coat metallic oxide adhesion promoters, and fuses permanently with the steel surface through a combination of mechanical interlocking and chemical bonding at the steel-enamel interface. On cooling, the enamel solidifies into a dense, pore-free glass layer permanently bonded to the steel substrate. This fired bond is not a coating that can be peeled, scratched off in sheets, or degraded by immersion — it is a permanent fusion that requires a mechanical impact concentrated enough to chip the glass layer to disrupt the coating locally.

Resulting Coating Properties The fired enamel layer is chemically equivalent to a glass ceramic — a dense inorganic non-metallic material with no porosity, no reactivity with water, and no metal ion leaching. Its surface hardness is significantly greater than that of organic coatings or soft metal platings, providing good resistance to the abrasion and impact that occurs during cleaning and maintenance. The mechanical impact strength of the enamel layer in water tank applications is specified to be four to five times that of ordinary enamel tableware, reflecting the specialized formulation used for water storage applications.

Section 3: Technical Specifications

Custom capacity, panel thickness, fitting configuration, insulation specification, and hot water configuration are available. Please contact our sales team with your required capacity, installation space dimensions, water quality parameters, and operating temperature requirements.

Section 4: Dual Protection Mechanism — Physical Isolation and Chemical Inertness

The corrosion protection mechanism of the Enamel Coated Water Storage Tank operates through two complementary modes that work simultaneously to prevent steel substrate corrosion and maintain water quality.

Physical Isolation — The Glass Armor Principle The vitreous enamel layer functions as a physical barrier between the stored water and the carbon steel substrate. Unlike organic coatings that are permeable to water molecules over time, the glass ceramic structure of the fired enamel has essentially zero water permeability — water cannot migrate through the enamel layer to reach the steel substrate under normal operating conditions. This physical impermeability means the carbon steel beneath the enamel surface is completely dry throughout the service life of the tank, preventing the electrochemical corrosion reactions that require water contact with the metal surface.

This physical isolation mechanism explains why enamel steel tanks perform well in the saline, high-chloride environments where stainless steel tanks are susceptible to pitting. The chloride ions in the stored water or surrounding atmosphere that attack the passive film on stainless steel surfaces cannot reach the carbon steel substrate of an intact enamel-coated tank — they encounter only the glass ceramic surface, which has no passive film to attack and no susceptibility to chloride-initiated pitting.

Chemical Inertness — The Stable Glass Surface The chemical composition of the fired enamel is formulated as a stable glass ceramic that does not participate in chemical reactions with water at normal operating temperatures and pH ranges. The silicate, aluminate, and borate glass network that constitutes the enamel layer is thermodynamically stable in contact with water across the pH range of normal potable and industrial water supplies. No metal ions are released from the glass ceramic surface into the stored water — unlike carbon steel, which releases iron ions at a rate determined by its corrosion rate, or galvanized steel, which releases zinc ions as the zinc coating oxidizes. The Vitreous Enamel Steel Water Tank surface presents a chemically inert, ion-free interface to the stored water, maintaining water quality compliance throughout the tank service life.

Combined Effect on Water Quality The combination of physical isolation and chemical inertness produces a water contact surface whose interaction with stored water is functionally equivalent to a glass or ceramic vessel. Stored water chemistry is not altered by contact with the tank surface. Bacteria and algae have no substrate nutrients from the glass ceramic surface to support colonization. The smooth, non-porous surface is easily cleaned of biofilm and mineral scale without requiring chemical treatments that could compromise material integrity. These combined properties are the basis for the compliance of the Enamel Coated Water Storage Tank with national drinking water hygiene standards for water contact materials.

Section 5: How It Works — Water Storage and System Integration

Filling and Level Control Water enters the tank through the inlet connection fitted with a float valve or solenoid valve controlled by the level monitoring system. The float valve closes automatically when the tank reaches the maximum water level set point and reopens when the level drops to the minimum set point, maintaining the tank water level within the specified operating range without manual intervention. The vent valve on the tank roof allows air to enter and exit the tank as the water level changes, preventing the pressure differential that would otherwise impede filling and emptying.

Water Supply from Tank to System Water exits the tank through the outlet connection, typically at the base of the tank to allow gravity-fed supply or connection to a booster pump system. The outlet pipe connection includes an isolation valve allowing the tank to be taken offline for maintenance without interrupting supply. For fire suppression tanks, a dedicated fire pump suction connection is provided at the tank, typically including a vortex breaker fitting to prevent air ingress when the tank level is low during extended fire demand periods.

Condensate and Drainage The drain outlet at the base of the tank allows the tank to be completely emptied for cleaning, inspection, or maintenance. The drain valve is normally closed during operation and opened only for these purposes. For tanks serving potable water supply, the drain valve is opened periodically — typically every two to three months — to flush accumulated sediment from the tank base before the full cleaning cycle.

Overflow Protection An overflow pipe connection at the maximum water level position provides a passive overflow pathway that prevents tank overfilling in the event of float valve or solenoid valve failure. The overflow outlet is sized to pass the maximum supply flow rate and is routed to a safe discharge point without creating a flooding risk.

Monitoring and Alarms The level gauge port accommodates mechanical float gauges or electronic level transmitters that provide continuous level indication and can trigger high-level and low-level alarms through the building management system. These monitoring functions are important for fire suppression tanks where maintaining minimum water volume is a regulatory requirement, and for building water supply tanks where low-level conditions indicate a supply problem requiring immediate attention.

Section 6: Manufacturing Process and Quality Control

Dezhou Pengkai Air Conditioning Equipment Co., Ltd. applies comprehensive quality management throughout Enamel Coated Water Storage Tank production:

Steel Incoming Inspection Q235 carbon steel sheet is verified for grade certificate compliance, dimensional accuracy, and surface condition on receipt. Surface preparation quality before enamel application is critical — any contamination remaining on the steel surface impairs enamel adhesion and creates local coating defects.

Panel Pressing and Profile Forming Steel panels are cut to module dimensions and pressed to the specified corrugated or reinforcing profile. The profile geometry provides structural rigidity to each panel against the hydrostatic pressure load it will carry in service. Profile dimensional accuracy is verified after pressing.

Surface Preparation Panels are degreased, pickled to remove mill scale, and surface-treated to achieve the clean, active metal surface required for enamel adhesion. Surface preparation quality is inspected before enamel application — panels that do not meet surface cleanliness standards are re-prepared before proceeding.

Ground Coat and Cover Coat Application Ground coat and cover coat enamel slips are applied to the prepared panel surfaces by spray or dip application, achieving uniform film thickness across the panel including edges and corners. Coating weight and uniformity are verified before firing.

Controlled Firing at 850 to 900°C Coated panels are fired in a tunnel or box furnace with controlled temperature profile. Temperature uniformity across the firing zone is monitored to ensure all areas of each panel reach the sintering temperature required for complete fusion. The firing schedule — ramp rate, hold time, and cooling rate — is specified to achieve the required enamel properties without thermal shock cracking of the coating or distortion of the steel base plate.

Enamel Quality Inspection Fired panels are inspected for coating completeness, surface defects, adhesion quality, and impact resistance. Any panel with coating defects affecting the water contact surface is rejected. The mechanical impact strength of the enamel coating is verified by standard test methods to confirm compliance with the 4 to 5 times ordinary enamel tableware impact strength specification.

24-Hour Hydraulic Fill Test Every assembled tank undergoes a 24-hour hydraulic fill test at rated capacity before dispatch, verifying zero leakage at all panel joints, fitting connections, and gasket interfaces. Test records are supplied with the delivered tank.

Section 7: Product Features and Advantages

20 to 30 Year Design Service Life The permanent fusion of the enamel coating to the steel substrate — not an applied coating that can degrade, peel, or be scraped away — and the chemical stability of the glass ceramic enamel in water contact service produce a design service life of 20 to 30 years, longer than the 15 to 20 year typical service life of stainless steel tanks and significantly longer than organic-coated or galvanized steel alternatives.

Superior Performance in High-Chloride Environments The Vitreous Enamel Steel Water Tank is the technically superior specification for coastal locations, high-humidity industrial environments, and areas with high chloride content in municipal water supply, where stainless steel SUS304 is susceptible to pitting corrosion initiated by chloride attack on the passive film. The glass ceramic enamel surface has no susceptibility to chloride-initiated pitting.

Drinking Water Hygiene Compliance The fired glass ceramic enamel surface meets the requirements of the national standard for the safety evaluation of materials used in water supply and protection for drinking water — GB/T 17219 — confirming zero metal ion leaching, no harmful substance release, and suitability for direct drinking water contact across the full tank service life.

High Structural Load Capacity The Q235 carbon steel substrate provides structural load capacity that accommodates large-capacity tank designs and outdoor installations subject to wind, seismic, and snow loads without the dimensional constraints that limit stainless steel tank panel thickness for equivalent load ratings. The Modular Enamel Drinking Water Tank structure with internal stainless steel tie rods and reinforcing plates achieves the structural rigidity required for tanks of tens to hundreds of cubic meters capacity.

Modular Installation Without Heavy Equipment Standard 1m × 1m and 1m × 0.5m panel modules are sized for manual handling and transport through standard building access routes, allowing tank assembly in the installation space without craneage or structural building openings. This on-site assembly capability is critical for rooftop, basement, and other constrained installation positions.

Smooth Surface for Easy Cleaning The glass ceramic enamel surface is smooth, non-porous, and chemically resistant to the cleaning agents used for water tank disinfection. Interior cleaning requires only soft cloth or sponge application with clean water — no abrasive tools that could damage organic coatings. Mineral scale and biofilm do not adhere strongly to the smooth enamel surface, reducing cleaning labor and frequency compared to rough-surface concrete tanks.

Thermal Insulation Option for Hot Water Systems The optional polyurethane foam insulation combined with an outer protective casing creates a complete thermal storage unit for solar water heating systems, air source heat pump water heater systems, and industrial hot water storage applications. The enamel coating is stable at continuous operating temperatures up to 90°C, covering the normal operating range of domestic and commercial hot water systems.

Section 8: Application Scenarios

Residential Building Secondary Water Supply Urban residential buildings commonly use elevated or rooftop tanks to buffer municipal supply pressure variations and provide local water storage for daily demand. The Enamel Coated Water Storage Tank in modular assembled configuration is installed on rooftop plant platforms or in basement plant rooms, providing potable water storage that maintains hygiene compliance throughout the building's operating life. The modular panel system allows capacity to be matched precisely to building occupancy water demand without requiring oversized standard configurations.

Schools and Educational Institutions School buildings require reliable potable water supply for student and staff drinking water, sanitary facilities, kitchen operations, and fire suppression reserves. Water quality compliance and maintenance simplicity are priority requirements in educational institution water systems. The Vitreous Enamel Steel Water Tank smooth surface, low-frequency cleaning requirement, and long service life without re-lining serve these requirements economically over the operating life of school buildings.

Hospitals and Healthcare Facilities Hospital water supply must meet the most stringent drinking water hygiene standards, with particular attention to Legionella prevention. The smooth, non-porous enamel surface inhibits biofilm formation — the prerequisite for Legionella colonization — more effectively than concrete or galvanized steel tank surfaces. The chemical inertness of the glass ceramic enamel means the stored water chemistry is not altered by contact with the tank, supporting the water quality standards required for patient safety in clinical environments.

Office Buildings and Commercial Premises Commercial buildings require water supply systems that are reliable, low-maintenance, and compliant with building regulations for water quality. The Enamel Coated Water Storage Tank serves office building water supply with a service life that typically exceeds the lease cycle of commercial office buildings, avoiding the disruption and cost of tank replacement within the building's operational life.

Fire Suppression Water Storage Building fire suppression systems require dedicated water storage maintained at specified minimum volumes at all times. The structural load capacity of the steel substrate accommodates the large-volume fire suppression tanks required by high-rise buildings and large commercial complexes, while the enamel coating maintains the quality of the stored fire water without the risk of rust products contaminating the sprinkler system that would occur in galvanized steel tanks.

Industrial Process Water and Manufacturing Food processing plants, pharmaceutical production facilities, beverage manufacturing operations, and industrial manufacturing facilities require process water storage that meets food-grade hygiene standards. The Modular Enamel Drinking Water Tank food-grade enamel surface serves these applications while providing the structural robustness required for industrial installation environments.

Solar Water Heating and Heat Pump Systems Solar water heating systems and air source heat pump systems require insulated hot water storage tanks capable of sustained operation at temperatures up to 90°C. The insulated Enamel Coated Water Storage Tank configuration with polyurethane foam insulation and outer casing provides the thermal storage required for these renewable energy system applications, combining enamel corrosion protection with thermal performance.

Chemical and Industrial Water Storage — Weak Acid and Alkali Applications Industrial facilities requiring storage of weak acid or weak alkali process water benefit from the enamel coating's resistance to mild chemical attack that would rapidly degrade organic coatings and carbon steel. The glass ceramic enamel provides adequate chemical resistance for pH values within the specified operating range, making the Vitreous Enamel Steel Water Tank applicable to chemical industry water storage applications that are outside the scope of standard potable water tanks.

Section 9: Customer Application Feedback

Our enamel water tank products have been supplied to residential, commercial, industrial, and institutional projects across Southeast Asia and international markets:

"We specified Pengkai enamel water tanks for a coastal residential development where the salt air environment had caused premature corrosion of standard stainless steel tanks in previous projects. After three years of operation, the enamel panels show no signs of corrosion or coating deterioration — the glass ceramic surface has performed exactly as specified for the coastal environment. The modular assembly was completed without heavy lifting equipment, which was important on this rooftop installation." — Building Services Contractor, Coastal Residential Project, Southeast Asia

"For a hospital water supply upgrade project with strict water quality management requirements, we selected Pengkai Vitreous Enamel Steel Water Tank units for all potable water storage positions. The smooth enamel surface supports our Legionella prevention protocol, and the 24-hour hydraulic test records and water quality compliance documentation provided with each tank simplified our regulatory submission process." — MEP Consultant, Healthcare Facility Upgrade

"We have used Pengkai Enamel Coated Water Storage Tank products for fire suppression water storage across several large commercial development projects. The structural capacity for the required fire reserve volumes, consistent build quality across supply batches, and complete technical documentation have made these our standard specification for fire suppression storage in this market." — Fire Protection Engineering Contractor

Section 10: Installation Guidelines

Foundation Preparation The tank base must be supported on a level, structurally adequate reinforced concrete base or steel frame support designed for the full water-filled tank load. Foundation design must account for concentrated loads at the base frame support points. For rooftop installations, a structural engineer must confirm roof load capacity. Level the base frame in all directions before panel assembly — uneven base framing causes uneven panel joint stress distribution and increased leakage risk.

Panel Assembly Sequence Begin assembly from the base panels outward and upward. Position food-grade rubber gaskets at all panel joint faces with no folds, gaps, or displacement. Insert stainless steel tie rods and reinforcing plates at the positions specified in the assembly drawing for the relevant tank capacity. Tighten stainless steel bolts at panel joints evenly in a star pattern to achieve uniform gasket compression — uneven tightening produces local gasket under-compression that can cause leakage.

Enamel Panel Handling Handle enamel panels carefully during transport, unloading, and assembly to avoid impact damage to the enamel coating. Use rubber-padded panel lifting grabs or slings to avoid metal-on-metal contact at panel edges. Do not drop panels or allow them to impact each other or hard surfaces. Any panel with enamel coating damage to the water-contact internal surface should not be installed — contact our sales team for replacement panel supply.

Fitting Installation Install all manhole, vent, inlet, outlet, drain, and level gauge fittings with food-grade rubber gaskets of the correct specification. Tighten fitting connection hardware to the specified torque — over-tightening can crack the enamel around the fitting opening, under-tightening results in gasket leakage.

Initial Fill Test and Disinfection Fill the tank progressively — to one-third capacity with 30-minute hold for leak inspection, then to two-thirds, then to full. Hold the full tank for 24 hours with final inspection of all joints and fittings for leakage before accepting for service. For potable water applications, disinfect before first use by filling with water containing 50 to 100 mg/L chlorine disinfectant, holding for 30 minutes, draining, and flushing two to three times until no chlorine odor remains.

Initial Flushing Before the disinfection cycle, fill the tank with water, open the drain valve, and flush continuously for 10 to 15 minutes to remove any enamel production residues, dust, or assembly debris from the interior.

Section 11: Maintenance Schedule

Every 2 to 3 Months — Internal Cleaning (Potable Water) Drain the tank, enter through the manhole with adequate ventilation and safety precautions. Clean all internal surfaces using soft cloths or sponges with clean water. Do not use abrasive cleaning tools — steel wire brushes, sandpaper, or hard scrapers will damage the enamel surface, exposing the steel substrate. Flush with clean water after cleaning. Refill normally after inspection confirms all surfaces are clean.

Quarterly — Joint and Fitting Inspection Inspect all panel joint connections for signs of leakage or gasket extrusion. Check all fitting connections for seepage. Verify that the vent valve is unobstructed. Test float valve function by manually raising the float to confirm valve closure.

Semi-Annual — Enamel Coating Inspection Inspect all internal enamel surfaces for signs of localized coating damage — small chips, cracks, or areas of discoloration that may indicate coating failure and exposed steel substrate. Any identified coating defects should be assessed by a qualified technician — small defects can be repaired using approved enamel repair kits; larger areas of coating failure may require panel replacement.

Annual — Structural Inspection Inspect all internal tie rods and reinforcing plates for condition. Check all bolted panel joint connections for tightness and re-torque any connections that have loosened. Inspect the base frame and foundation for settlement or corrosion. Test electronic level gauges and alarm systems for correct function.

Section 12: Packaging, Shipping, and Lead Time

Packaging Enamel coated panels are individually wrapped in protective foam or felt padding and packed in wooden crates or steel-banded bundles, with careful attention to preventing panel-to-panel contact that could cause enamel chipping. Fittings, gaskets, bolts, tie rods, and assembly hardware are packed in clearly labeled separate cartons within the shipment. Export-grade packaging is standard for all international orders.

Handling Instructions All packaging is marked with fragile handling warnings appropriate to the brittle nature of the enamel coating. Shipments include handling guidance documentation reminding logistics handlers to avoid dropping, impacting, or stacking heavy items on the panel crates.

Lead Time Standard capacity modular assembled configurations in standard firing color and panel specification are available with short lead times from production scheduling. Custom capacity configurations, hot water specification with high-temperature resistant enamel, and insulated configurations are produced to order with lead times confirmed at order placement.

Shipping We ship from Dezhou, Shandong Province. Sea freight is the standard mode for international orders due to the size and weight of panel components. We work with established freight forwarding partners serving Southeast Asia, the Middle East, and global destinations. FCL sea freight is recommended for complete tank orders to minimize handling frequency that could risk panel impact damage.

Sample Policy Representative enamel panel samples demonstrating coating quality, surface finish, and impact resistance are available for pre-order verification. Sample costs and shipping fees are agreed prior to dispatch.

Payment Terms We support T/T bank transfer and other payment arrangements as mutually agreed. Please contact our sales team for terms appropriate to your project order value and procurement process.

Section 13: Certifications and Quality Assurance

Dezhou Pengkai Air Conditioning Equipment Co., Ltd. manufactures enamel water tank products in compliance with applicable national standards for enamel-coated water storage equipment and the safety evaluation standard GB/T 17219 for materials in contact with drinking water. Production quality management covers steel incoming inspection, surface preparation verification, enamel coating application quality control, firing temperature monitoring, enamel coating inspection and impact resistance testing of fired panels, and 24-hour hydraulic fill testing of every assembled tank. Material certificates, enamel coating test records, and hydraulic test certificates are supplied with every order. We welcome third-party pre-shipment inspection for project-specific orders.
